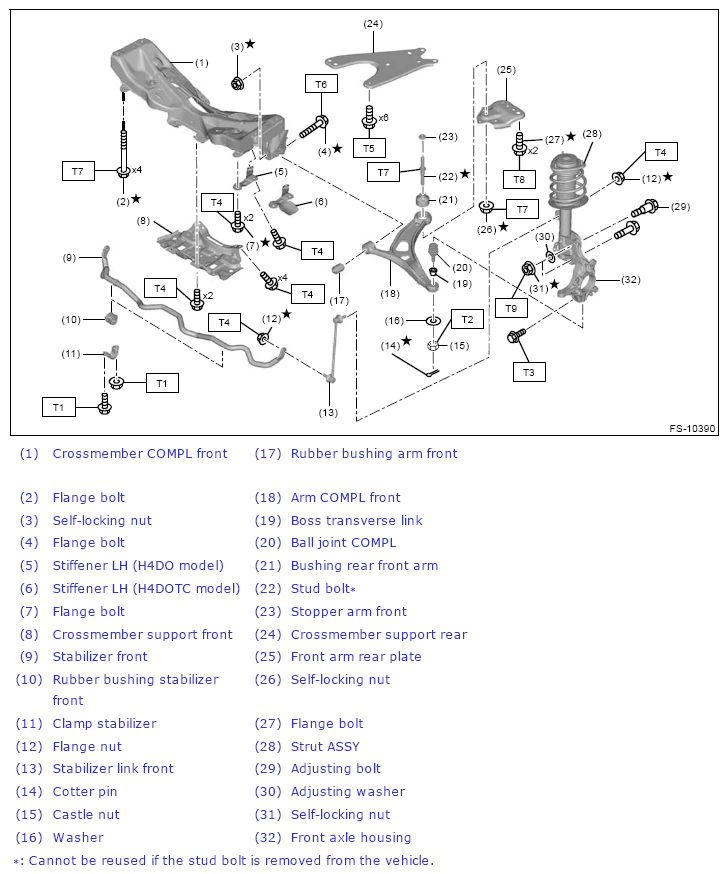

2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Sedan Model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 39 (4.0, 28.8)
T3: 50 (5.1, 36.9)
T4: 60 (6.1, 44.3)
T5: 70 (7.1, 51.6)
T6: 95 (9.7, 70.1)
T7: 110 (11.2, 81.1)
T8: 150 (15.3, 110.6)
T9: 155 (15.8, 114.3)
