Strut Compl Front
- Check for oil leaks.
- Move the piston rod up and down to check that it operates smoothly without any hitch.
- Check the piston rod runout.
Preparation tool:
Dial gauge
Magnet stand
- Fix the outer shell.

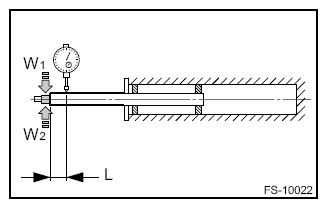

- Extend the piston rod until it stops retracting, and set the dial gauge at the L position from the end of the piston rod.
Measuring point:
L=10 mm (0.39 in)
- While applying a force of W1 [20 N (2 kgf, 4 lbf)] to the arrowed section, read the dial gauge indication P1.
- While applying a force of W2 [20 N (2 kgf, 4 lbf)] from the opposite side of W1, read the dial gauge indication P2.
Play limit (P1+ P2):
0.8 mm (0.031 in)
- Replace the strut COMPL front if a fault is found in the inspection or limit value is exceeded.
