2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Front Strut: Disposal
CAUTION:
- Before handling the strut COMPL front and the shock absorber COMPL rear, be sure to wear goggles to protect eyes from gas, oil and cutting powder.
- Do not disassemble the strut COMPL front and the shock absorber COMPL rear or throw them into flames.
- When discarding the strut COMPL front and the shock absorber COMPL rear filled with gas, drill a hole on them to purge the gas.
- Place the strut COMPL front and the shock absorber COMPL rear on a level surface with the piston rod fully expanded.

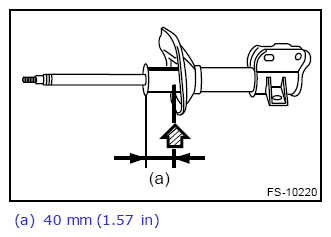

- Make a hole of 30 mm (1.18 in) deep into the specified position shown in the figure, using a drill with 2 - 3 mm (0.08 - 0.12 in) diameter.
