Rear Toe-In
When adjusting, adjust it to the following value.
Toe-in: Adjustment value
0±2 mm (0±0.08 in)

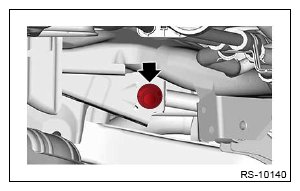

- Loosen the self-locking nut while holding the bolt side of rear lateral link assembly front.
- Turn the adjusting bolt until toe-in is within the specification.NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 6 mm (0.24 in).
To increase toe-in. Rotate the left side clockwise. Rotate the right side Counter clockwise. To decrease toe-in. Rotate the left side Counter clockwise. Rotate the right side clockwise. - Attach and tighten a new self-locking nut.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
