Universal Joint: Inspection
Check for wear, damage or any other faults.

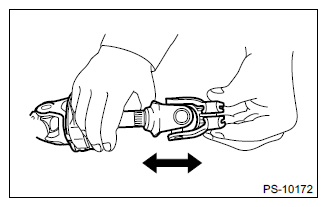

- Check the universal joint assembly steering for excessive looseness.
Service limit:
Play of the universal joint assembly steering: 0 mm (0 in)
- Measure the swing load of the universal joint assembly steering.
- Place the universal joint assembly steering between wooden blocks and fix it on a vise.

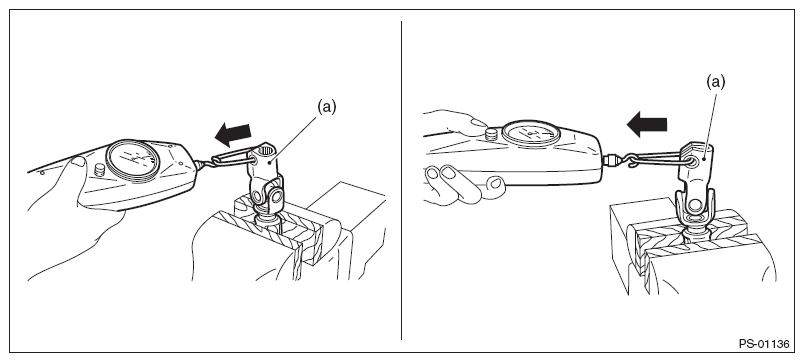

- With the yoke (a) of gearbox side facing up, measure the swing load in two directions.
Service limit:
Maximum load:
Sedan model: 4.5 N (0.46 kgf, 1.01 lbf) or less
OUTBACK model: 2.8 N (0.29 kgf, 0.63 lbf) or less

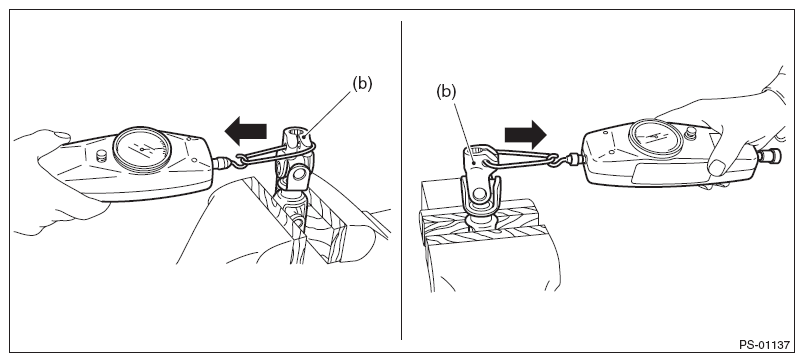

- With the yoke (b) of the column assembly steering side facing up, measure the swing load in two directions.
Service limit:
Maximum load: 5.4 N (0.55 kgf, 1.21 lbf) or less
- Replace as necessary, if it is found defective.
