2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Steering Wheel: Assembly
CAUTION:
- Securely install the switch and the cover steering wheel LWR. Improper insertion of the pins or claws of the switch and the cover steering wheel LWR may cause improper installation.
- When installing the heater steering wheel and the cover steering wheel LWR for models with steering heater, be careful of the following:
- Attach the heater element to the cover steering wheel LWR so that it is not twisted or does not interfere with switches.
- Be careful not to allow the heater element to be caught in steering frame, unit and the cover steering wheel LWR.
- Install the switch assembly steering (MID).
- Install the steering heater switch and steering heater unit to the cover steering wheel LWR. (Model with steering heater)
- Install the satellite switch.

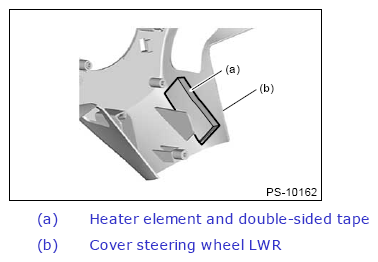

- Install the cover steering wheel LWR.NOTE: Secure the heater element on the cover steering wheel LWR using double-sided tape. Refer to the figure below to attach the heater element and double-sided tape symmetrically.
- Install the cover spoke.
- Install the paddle shift switch.
