2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
RH Side
WARNING: This page is about a different variant/trim than selected.
- Install the knock sensor and connect the connector (A).NOTE:

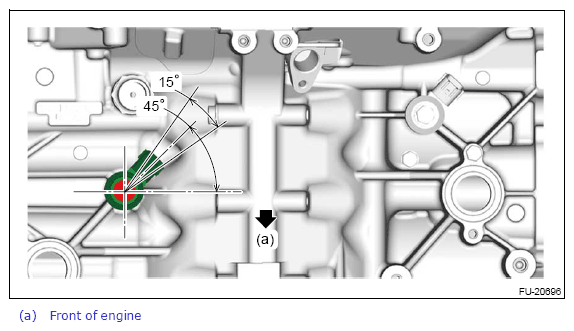

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Secure the engine wiring harness with the bolts.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install the fuel pipe insulator No. 3. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>INSTALLATION .
- Install the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold Assembly>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
