Intake Manifold Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cylinder head plate to the cylinder head.
    G13619551Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel pipe protector stay.

    Tightening torque:Ā

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13198184Courtesy of SUBARU OF AMERICA, INC.
  3. Set a new gasket and install the intake manifold assembly.
    NOTE: Be careful not to let the engine wiring harness be caught by the parts.

    Tightening torque:Ā

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13619549Courtesy of SUBARU OF AMERICA, INC.
  4. Set a new gasket, and install the stud bolts using TORXĀ® socket E5.

    Tightening torque:Ā

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G13198181Courtesy of SUBARU OF AMERICA, INC.
  5. Temporarily attach the EGR pipe No. 2 and tighten it in order (1) → (2) → (3).

    Tightening torque:Ā

    9 N.m (0.9 kgf-m, 6.6 ft-lb)

    Fig 1: EGR Pipe No. 2 Nuts Tightening Sequence
    G13198191Courtesy of SUBARU OF AMERICA, INC.
  6. Install the PCV hose. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Hose>INSTALLATION .
  7. Install the harness stay.

    Tightening torque:Ā

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  8. Install the clip (E) and connector (D).
  9. Install the clip (C) and harness (B) to the harness stay.
  10. Connect the connector (A).
    G13198179Courtesy of SUBARU OF AMERICA, INC.

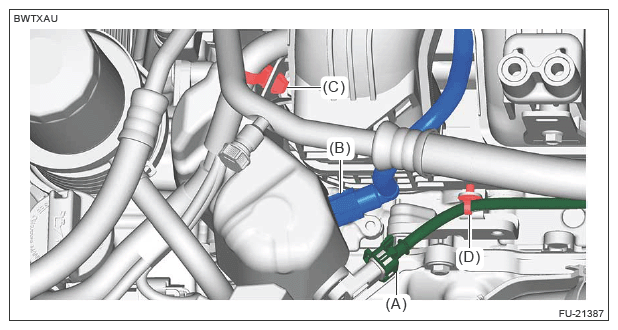

  11. Install the clip (C) and clip (D).
  12. Connect the fuel delivery pipe (B). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE B)Ā .
  13. Connect the connector (A).
    G13619545Courtesy of SUBARU OF AMERICA, INC.
  14. Install the fuel pipe protector No. 2.

    Tightening torque:Ā

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13619544Courtesy of SUBARU OF AMERICA, INC.

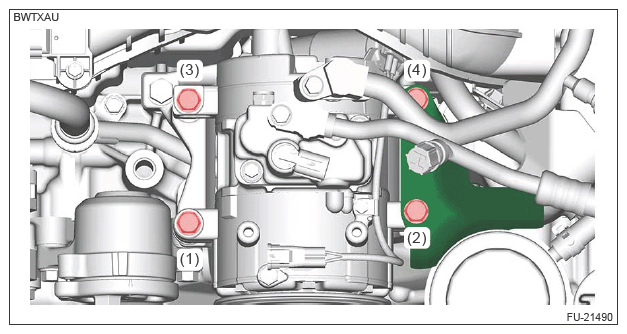

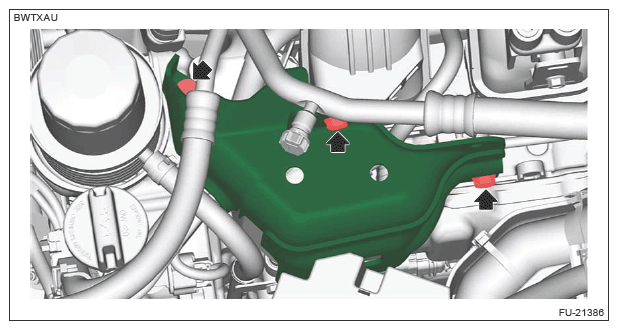

  15. Temporarily attach the fuel pipe protector No. 1, and tighten the bolts securing the A/C compressor in numerical order as shown in figure.

    Tightening torque:Ā

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    Fig 2: A/C Compressor Bolts Tightening Sequence
    G13619560Courtesy of SUBARU OF AMERICA, INC.
  16. Install the V-belts. Refer to MECHANICAL (H4DOTC)>V-belt>INSTALLATION>V-BELT .

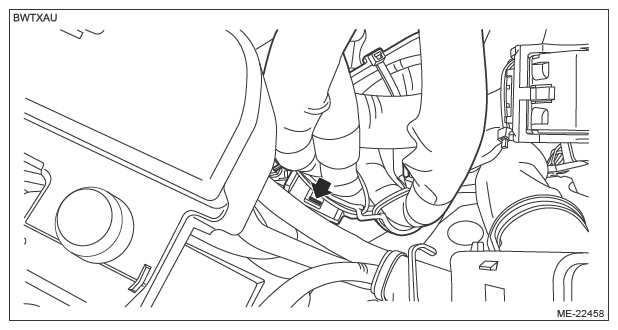

  17. Set the engine wiring harness and secure the engine wiring harness to the bracket with the claw.
    G13619542Courtesy of SUBARU OF AMERICA, INC.
  18. Install the engine wiring harness to the clip (A), and connect the connector (B).

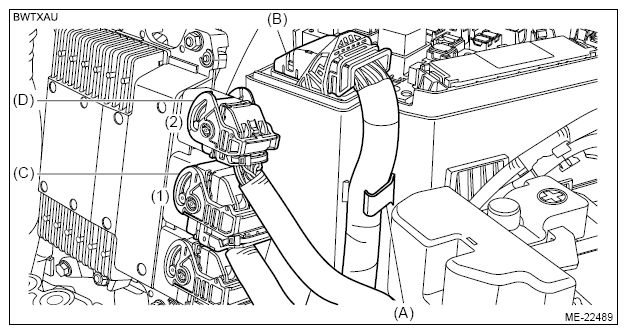

  19. Connect the connector (C) and connector (D) in numerical order shown in figure.
    G13619562Courtesy of SUBARU OF AMERICA, INC.

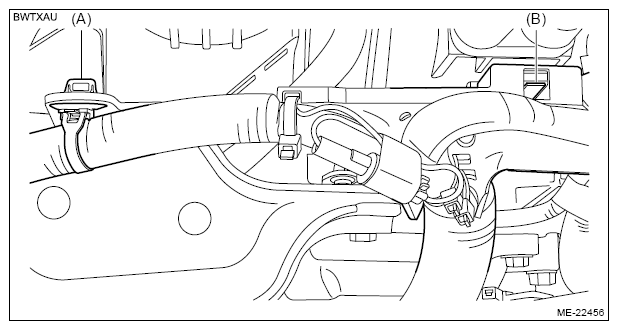

  20. Secure the battery cable assembly with the claw (B) and clip (A).
    G13619540Courtesy of SUBARU OF AMERICA, INC.

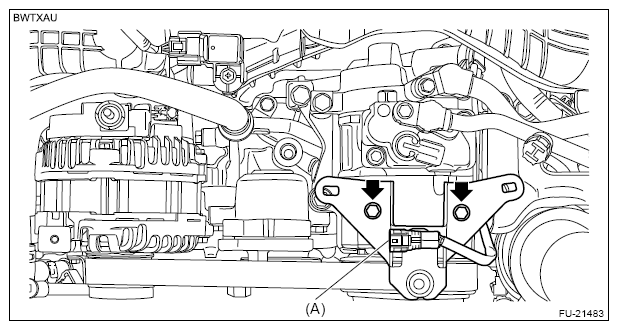

  21. Install the V-belt cover bracket and install the connector (A).

    Tightening torque:Ā

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G13619539Courtesy of SUBARU OF AMERICA, INC.
  22. Secure the battery cable assembly with the clip (A) and clip (B).

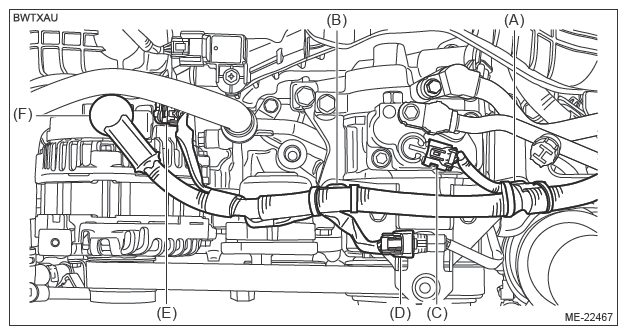

  23. Connect the connector (C), connector (D), connector (E), and the terminal (F).

    Tightening torque:Ā

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

    G13619565Courtesy of SUBARU OF AMERICA, INC.
  24. Install the V-belt cover.

    Tightening torque:Ā

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

  25. Connect the purge hose (E).
  26. Install the fuel delivery tube clamp (D).
  27. Connect the fuel delivery tube (C). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A)Ā .
  28. Connect the connector (A) and connector (B).
    G13198170Courtesy of SUBARU OF AMERICA, INC.
  29. Connect the PCV pipe assembly to the intake duct No. 1 with a new O-ring.
    CAUTION:
    • Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
    • Confirm that the connections are secure.
