2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
DTC P0606: Control Module Processor: Notes
WARNING: This page is about a different variant/trim than selected.
- -
DTC detecting condition:
Immediately at fault recognition
Trouble symptom:
- Improper idling
- Poor driving performance

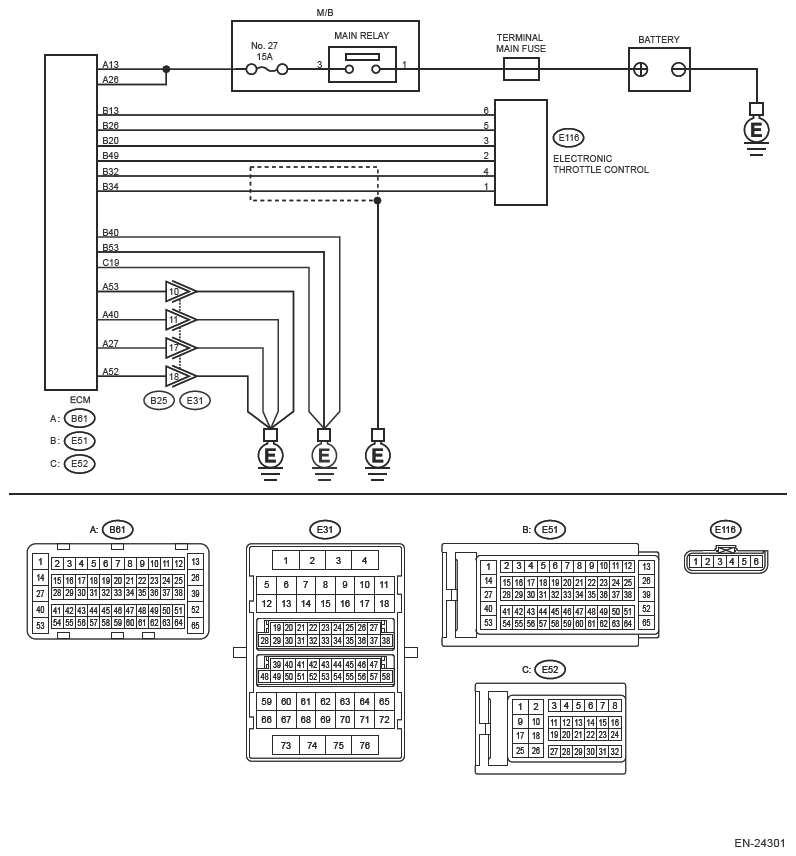

Wiring diagram:
Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .
CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Refer to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .
