LH Side
- Install the ignition coil.CAUTION: Degrease the mounting bolts, rocker cover installation portion and ignition coil installation hole.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
- Connect the connector to the ignition coil.
- Attach the bracket.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

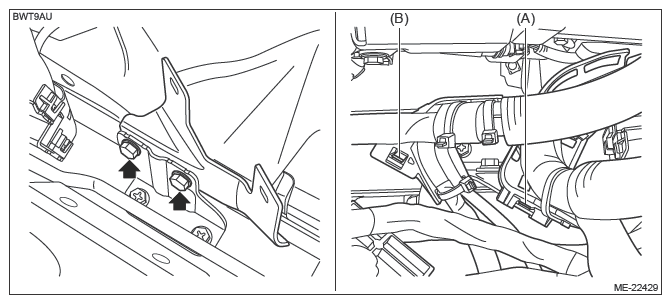

- Secure the engine wiring harness to the bracket with claw (A), and secure the battery cable assembly with claw (B).
- Install the engine wiring harness to the clip (C), and connect the connector (B) to the main fuse box.
- Connect connector (A) to ECM.CAUTION: To prevent damage to the connector (A), when connecting the connector (A), insert the connector (A) straight in until it stops, and while maintaining the position, lock the lever.
