2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
RH Side
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

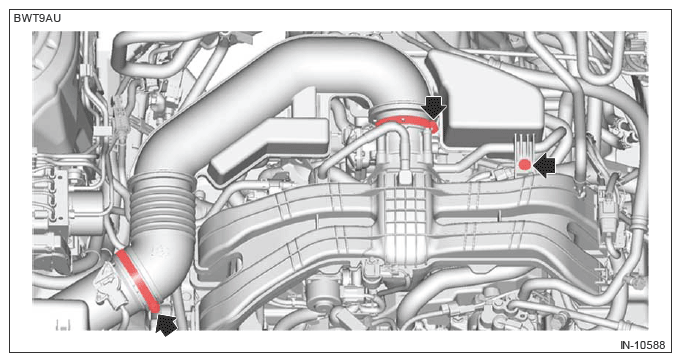

- Remove the clip from the air intake boot, and loosen the clamp.

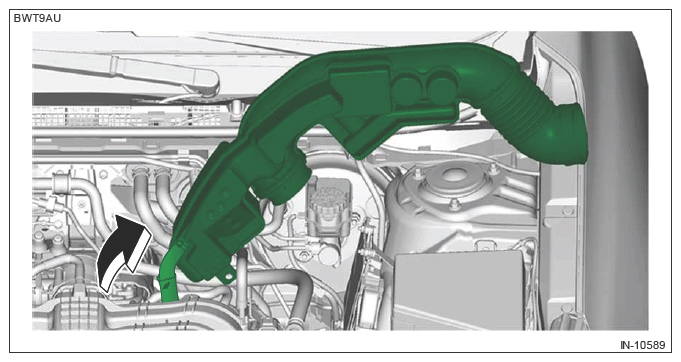

- Remove the air intake boot, and place it aside so that it does not interfere with the work.CAUTION: Be careful not to pull out the PCV hose.
- Remove the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .

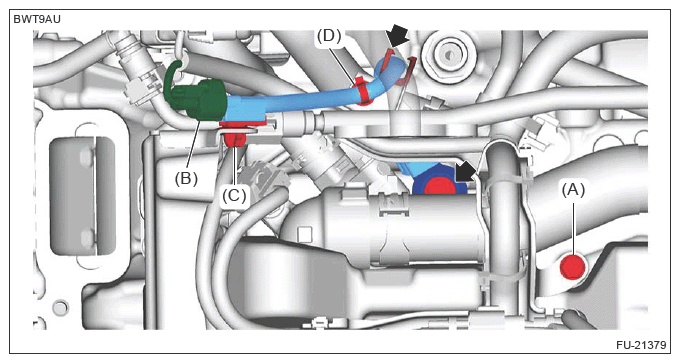

- Remove the bolt (A) securing the engine wiring harness.
- Disconnect the connector (B) and remove the clip (C).
- Remove the clip (D) and the coupling harness from the harness cover.
- Remove the knock sensor together with the coupling harness, and disconnect the coupling harness.
