High-Pressure Fuel Pump Case
- Apply liquid gasket to the mating surfaces of fuel pump case, and install the high-pressure fuel pump case.NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the high- pressure fuel pump case and the cam carrier assembly LH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

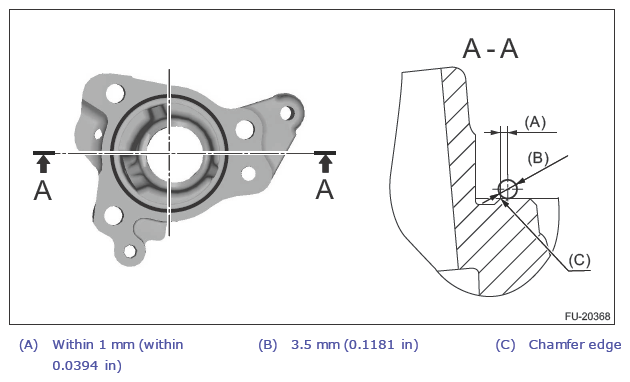

Liquid gasket applying diameter:
3.5±1 mm (0.1181±0.0394 in)
- Install the high-pressure fuel pump case.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the high-pressure fuel pump. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL PUMP>INSTALLATION>HIGH-PRESSURE FUEL PUMP .
