2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Fuel Tank: Installation

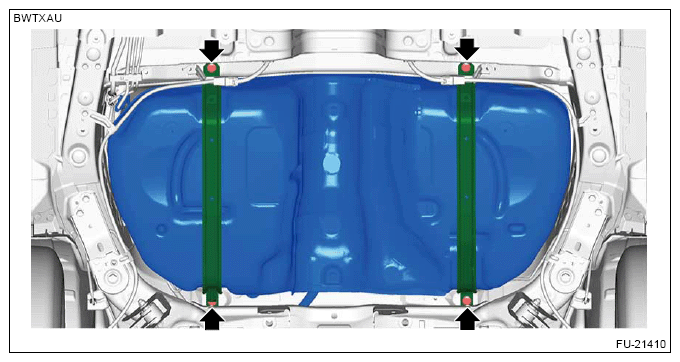

  1. Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
    CAUTION: A helper is required to perform this work.
    G13618542Courtesy of SUBARU OF AMERICA, INC.

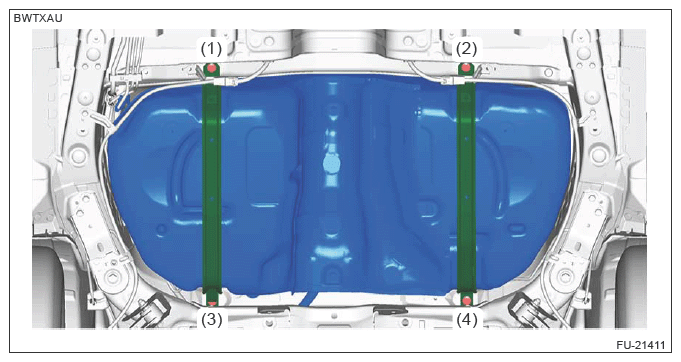

  2. Tighten the bolts of the fuel tank band in the numerical order shown in the figure.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

    Fig 1: Fuel Tank Band Bolts Tightening Sequence
    G13618544Courtesy of SUBARU OF AMERICA, INC.

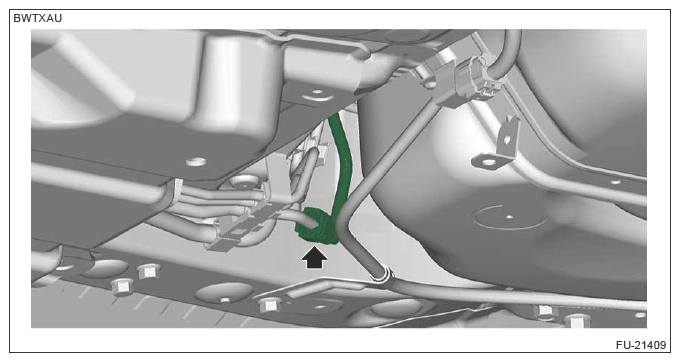

  3. Connect the fuel delivery tube to the fuel pipe assembly. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
    G13618541Courtesy of SUBARU OF AMERICA, INC.

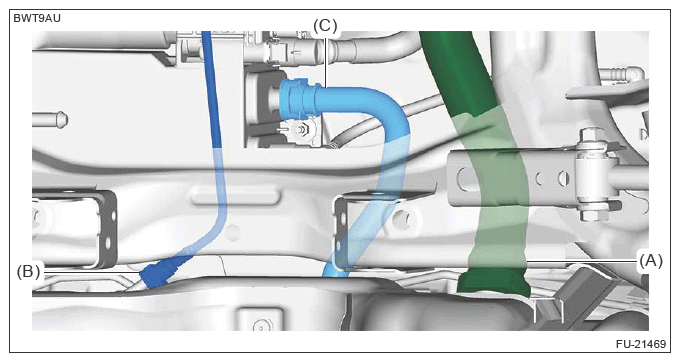

  4. Connect the vent tube (C) to the canister, Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE H) .
  5. Connect the circulate tube (B) to the fuel tank, Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
  6. Connect the fuel filler pipe (A) to the fuel tank, Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE I) .
    G13618540Courtesy of SUBARU OF AMERICA, INC.
  7. Install the rear differential, Refer to DIFFERENTIALS>Rear Differential (VA-type)>INSTALLATION .
  8. Install the rear exhaust pipe and muffler.

    Rear exhaust pipe:

    Refer to EXHAUST (H4DO)>Rear Exhaust Pipe>INSTALLATION .

    Muffler:

    Refer to EXHAUST (H4DO)>Muffler>INSTALLATION .

  9. Install the fuel tank protector. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Tank Protector>INSTALLATION .
  10. Lower the vehicle.
  11. Connect the connector to the fuel sub level sensor.
    G13618539Courtesy of SUBARU OF AMERICA, INC.
  12. Install the service hole cover of fuel sub level sensor.
    G13618538Courtesy of SUBARU OF AMERICA, INC.

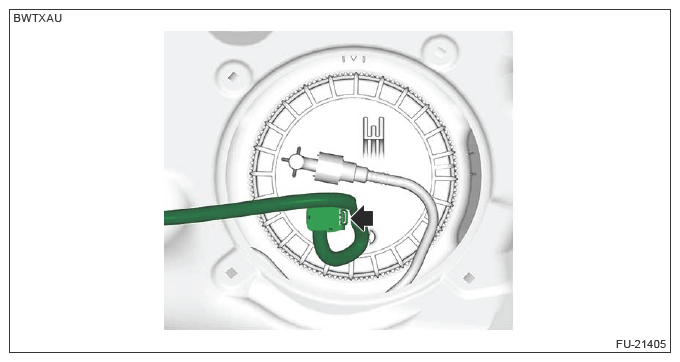

  13. Connect the connector to the fuel pump.
    G13618549Courtesy of SUBARU OF AMERICA, INC.

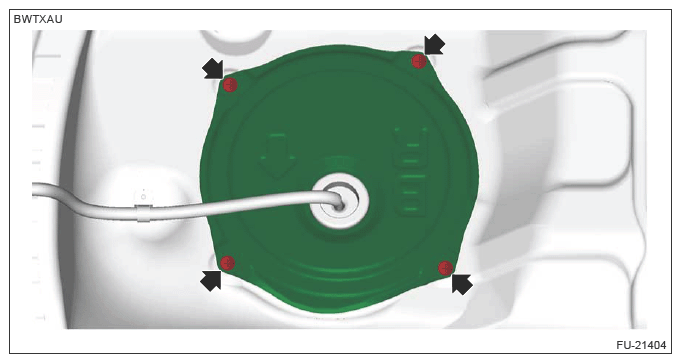

  14. Install the service hole cover of fuel pump.
    G13618536Courtesy of SUBARU OF AMERICA, INC.
  15. Install the rear seat cushion. Refer to SEATS>Rear Seat>INSTALLATION .
  16. Connect the ground terminal to battery sensor, Refer to REPAIR CONTENTS>NOTE>BATTERY .
