2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Fuel Insulator: Removal
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the clip from the air intake boot, and loosen the clamp.
- Remove the air intake boot, and place it aside so that it does not interfere with the work.CAUTION: Be careful not to pull out the PCV hose.
- Remove the intake manifold assembly. Refer to Fuel Injection (Fuel Systems) (H4DO)>Intake Manifold Assembly>REMOVAL .

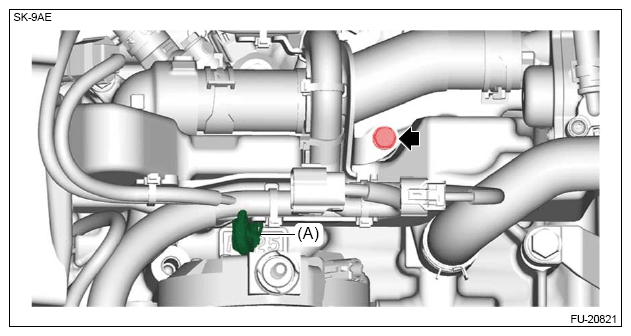

- Disconnect the connector (A) from the outlet engine coolant temperature sensor.
- Remove the bolts securing the engine wiring harness.

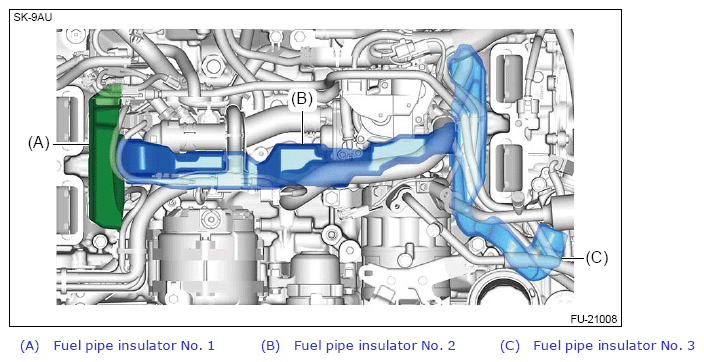

- Remove the fuel pipe insulator.
