2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Fuel Injector RH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13618350Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work. Caution:
    CAUTION: Be careful not to pull out the PCV hose.
    G13618351Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the high-pressure fuel delivery pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Deliver/Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  5. Remove the connector (A) and connector (B).
  6. Remove the fuel injector pipe RH together with the fuel injector.
    G13618399Courtesy of SUBARU OF AMERICA, INC.

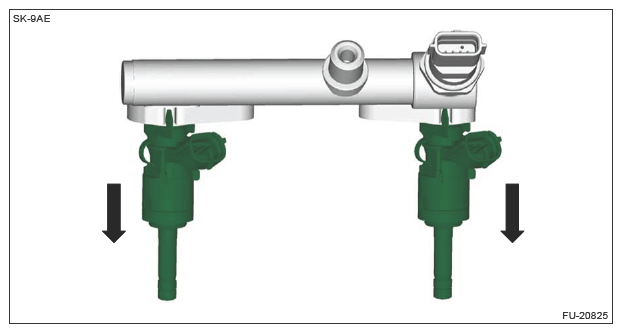

  7. Remove the fuel injector.
    G13223872Courtesy of SUBARU OF AMERICA, INC.
