2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Engine Assembly: Removal

  1. Remove the striker assembly front hood. Refer to EXTERIOR BODY PANELS>FRONT HOOD>DISASSEMBLY .
  2. Fully open the panel COMPL front hood. Refer to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  3. Release the fuel pressure. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  4. Collect the refrigerant. Refer to AIR CONDITIONER>Refrigerant Recovery Procedure>PROCEDURE .
  5. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  6. Disconnect the ground terminal of the battery sensor and the positive terminal of the battery. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  7. Remove the air intake boot. Refer to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>REMOVAL .
  8. Remove the air cleaner case (rear). Refer to INTAKE (INDUCTION) (H4DO)>Air Cleaner Case>REMOVAL .
  9. Remove the radiator. Refer to COOLING (H4DO)>Radiator>REMOVAL .

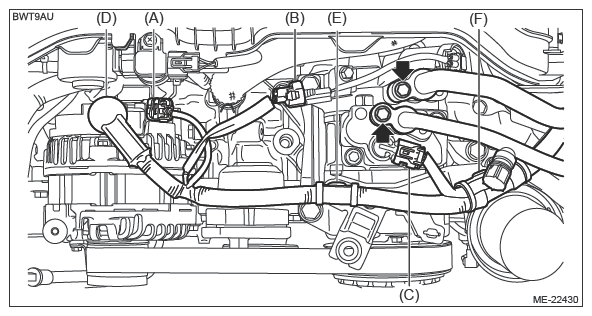

  10. Disconnect the connector (A), connector (B), connector (C) and terminal (D), and remove the clip (E) and clip (F).
  11. Disconnect the hose pressure suction and the hose pressure discharge from the A/C compressor. Refer to AIR CONDITIONER>Hose and Pipe>REMOVAL .
    G13618829Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the brake booster vacuum hose (A).
  13. Disconnect the connector (B), and remove the engine wiring harness from the clip (C).
  14. Remove the clip (D) securing battery cable assembly and release the claw (E).
    G13618364Courtesy of SUBARU OF AMERICA, INC.
  15. Disconnect connector (A) from ECM.
    CAUTION: In order to prevent damaging the connector (A), check that the lock is released completely when moving the lever.
