2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
LH Side
- Connect the coupling harness and install the knock sensor using a claw-foot wrench.NOTE:

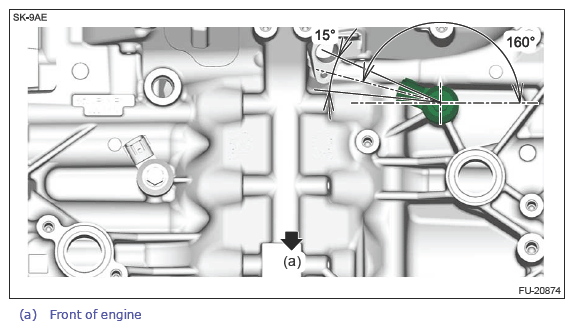

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
Calculation formula T= 25 N.m (2.5 kgf-m, 18.4 ft-lb) L1/(L1+L2) T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrenchNOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.Factory Service ToolsUse the Manual With the Right Hardware
