2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Oil Level Switch: Removal

CAUTION: If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Remove the striker assembly front hood. Refer to EXTERIOR BODY PANELS>Front Hood>DISASSEMBLY .
  2. Fully open the panel COMPL front hood. Refer to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  3. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the V-belt covers.
    G13618354Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake duct. Refer to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
  6. Remove the clip from the air intake boot, and loosen the clamp.
    G13618350Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13618351Courtesy of SUBARU OF AMERICA, INC.
  8. Drain the engine oil. Refer to LUBRICATION (H4DO)>Engine Oil>REPLACEMENT .
  9. Remove the front exhaust pipe. Refer to EXHAUST (H4DO)>Front Exhaust Pipe>REMOVAL .

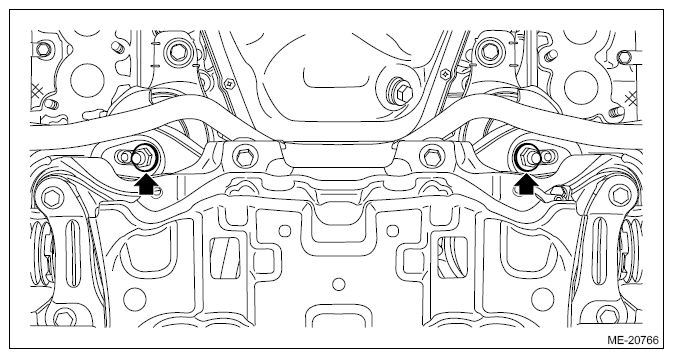

  10. Remove the nuts which secure the engine mounting to the crossmember COMPL front.
    G11253160Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the electric power steering gearbox. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Electric Power Steering Gearbox>REMOVAL .
  12. Remove the front drive shaft LH. Refer to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Front Drive Shaft>REMOVAL .
  13. Remove the TCM. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
  14. Using the ST1, install the ST2 to the engine unit.

    Preparation tool:

    ST1: BOLT (18363AA050)

    ST2: HANGER (18360AA040)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

    G13618980Courtesy of SUBARU OF AMERICA, INC.

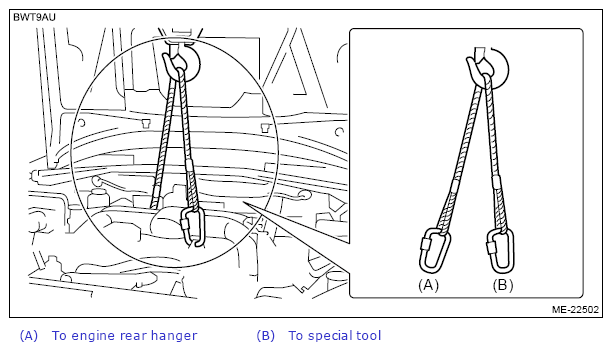

  15. Lift up the engine with a lifting device and wire ropes.
    CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
    G13619396Courtesy of SUBARU OF AMERICA, INC.

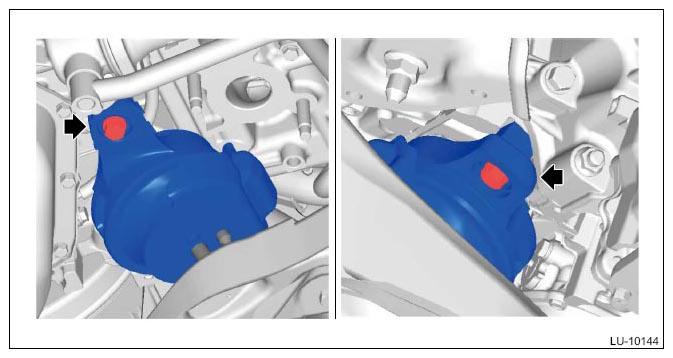

  16. Remove the engine mounting LH.
    G11253671Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the clip holding the oil level switch harness and disconnect the connectors.
    G13224827Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the clip securing the harness, and remove the oil level switch.
    G13224828Courtesy of SUBARU OF AMERICA, INC.
