2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

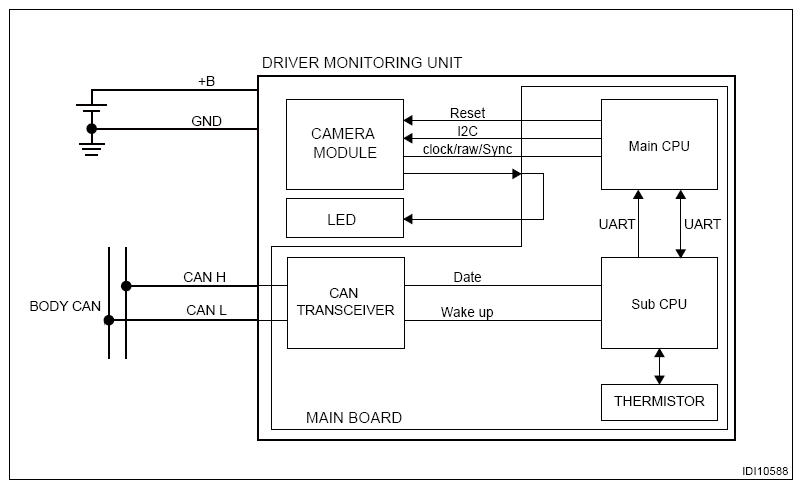

System Block Diagram
Detect and estimate the following by loading images of the driver using an infrared camera.
| Driver monitoring system detection item | Vehicle operation | |
|---|---|---|
| Estimate unsafe behaviors of the driver, and inform the driver and the fellow passenger. | Closed eyes drowsiness | Dozing drowsiness alarm |
| Audio mute | ||
| Inattention detection | Inattention alarm (DMS alone) | |
| Inattention alarm (EyeSight linkage) | ||
| Recognize individual persons and automatically change to usual settings. | Personal recognition | Seat personalize |
| Combination meter personalize | ||
| Mirror personalize | ||
| Cockpit control module personalize | ||
| A/C personalize | ||
| Main CPU | High-performance processor that processes personal recognition, inattention detection and dozing detection according to the input image from camera |
| Sub CPU | Processor that controls send/receive of CAN data |
| CAN transceiver | IC that provides physical IF between the CAN bus |
| CAMERA MODULE | Module that takes and outputs images to Main CPU as 12 bit data in the driver monitor unit |
| LED | Expose the infrared light based on the timing signal from the camera module |
| Thermistor | Measure temperature inside the driver monitor unit |
