2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

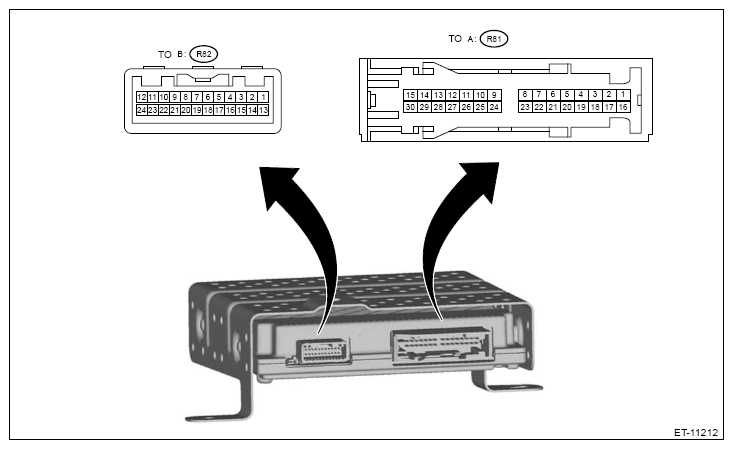

Power Amplifier
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (R81) No. 1 ←→ Chassis ground | Backup power supply | Always | Battery voltage |
| (R81) No. 2 | - | - | - |
| (R81) No. 3 ←→ Chassis ground | Ground | Always | 0 V |
| (R81) No. 4 | - | - | - |
| (R81) No. 5 | - | - | - |
| (R81) No. 6 | - | - | - |
| (R81) No. 7 | - | - | - |
| (R81) No. 8 | Woofer (+) | - | - |
| (R81) No. 9 | RH side tweeter (+) | - | - |
| (R81) No. 10 | Instrument panel center speaker (+) | - | - |
| (R81) No. 11 | LH front door speaker (+) | - | - |
| (R81) No. 12 | RH front door speaker (+) | - | - |
| (R81) No. 13 | LH side tweeter (+) | - | - |
| (R81) No. 14 | LH rear door speaker (+) | - | - |
| (R81) No. 15 | RH rear door speaker (+) | - | - |
| (R81) No. 16 | Backup power supply 2 | Always | Battery voltage |
| (R81) No. 17 | - | - | - |
| (R81) No. 18 | Ground 2 | Always | 0 V |
| (R81) No. 19 | - | - | - |
| (R81) No. 20 | - | - | - |
| (R81) No. 21 | - | - | - |
| (R81) No. 22 | - | - | - |
| (R81) No. 23 | Woofer (-) | - | - |
| (R81) No. 24 | RH side tweeter (-) | - | - |
| (R81) No. 25 | Instrument panel center speaker (-) | - | - |
| (R81) No. 26 | LH front door speaker (-) | - | - |
| (R81) No. 27 | RH front door speaker (-) | - | - |
| (R81) No. 28 | LH side tweeter (-) | - | - |
| (R81) No. 29 | LH rear door speaker (-) | - | - |
| (R81) No. 30 | RH rear door speaker (-) | - | - |
| (R82) No. 1 | Mute | - | - |
| (R82) No. 2 | LH main voice input (-) | - | - |
| (R82) No. 3 | LH main voice input (+) | - | - |
| (R82) No. 4 | RH main voice input (-) | - | - |
| (R82) No. 5 | RH main voice input (+) | - | - |
| (R82) No. 6 | Shield ground | - | - |
| (R82) No. 7 | CAN communication (-) | - | - |
| (R82) No. 8 | CAN communication (+) | - | - |
| (R82) No. 9 | - | - | - |
| (R82) No. 10 | - | - | - |
| (R82) No. 11 | - | - | - |
| (R82) No. 12 | ACC power supply | ACC ON | 11 - 15 V |
| (R82) No. 13 | - | - | - |
| (R82) No. 14 | Interrupt voice input (-) | - | - |
| (R82) No. 15 | Interrupt voice input (+) | - | - |
| (R82) No. 16 | - | - | - |
| (R82) No. 17 | - | - | - |
| (R82) No. 18 | Shield ground 2 | - | - |
| (R82) No. 19 | - | - | - |
| (R82) No. 20 | - | - | - |
| (R82) No. 21 | - | - | - |
| (R82) No. 22 | - | - | - |
| (R82) No. 23 | - | - | - |
| (R82) No. 24 | - | - | - |
