2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Engine Starting System & Charging System (2.5L): Starter: Installation
CAUTION:
- When replacing the starter, be sure to perform [Start count clearing] after the service. Refer to AUTO START STOP (DIAGNOSTICS)>Work Support .
- When replacing the starter, be sure to replace the fuel pump relay at the same time. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump Relay .

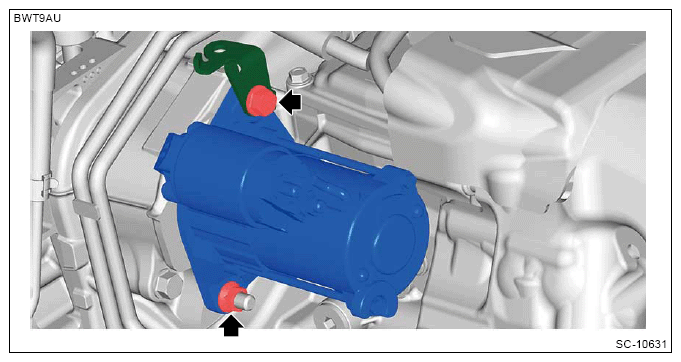

- Install the starter and cable stay.
Tightening torque:
50 N.m (5.1 kgf-m, 36.9 ft-lb)
- Connect the ground terminal (C).
Tightening torque:
14 N.m (1.4 kgf-m, 10.3 ft-lb)
- Connect the terminal B (B) and connector (A).
Tightening torque:
11 N.m (1.1 kgf-m, 8.1 ft-lb)
- Install the front wheel LH. Refer to WHEEL AND TIRE SYSTEM>Tire and Wheel>INSTALLATION .
- Install the air intake boot. Refer to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
