2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Battery Sensor: Removal

Disconnect the connector and ground terminal.

Courtesy of SUBARU OF AMERICA, INC.
Remove the battery sensor.

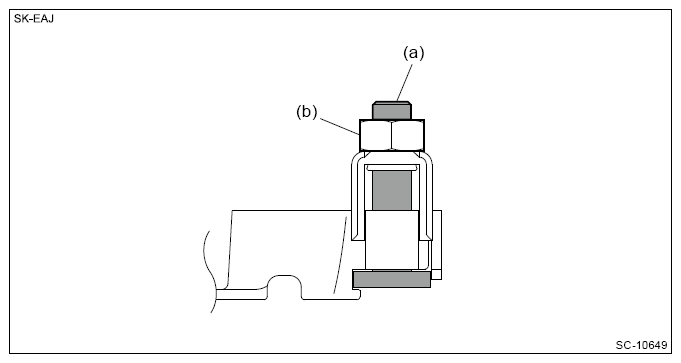

CAUTION: The end of the bolt (a) of the battery sensor is crimped. Therefore, do not loosen the nut (b) to the crimped portion.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
