2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Steering Angle Sensor: Installation
CAUTION:
- When removing, installing or replacing the VDC CM&H/U, VDC CM&H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform "VSC(VDC) Centering Mode" of the VDC. Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
- Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>General Description>CAUTION .
- Install the sensor assembly VDC steering.

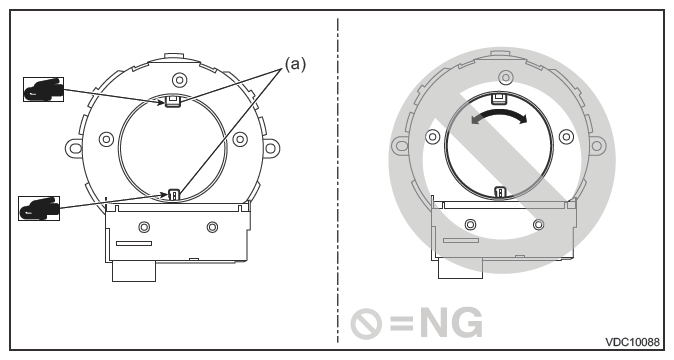

- Apply grease to the protrusion (a) of the new sensor assembly VDC steering.CAUTION: Do not rotate the steering angle sensor protrusion.
- Align the center of steering roll connector. Refer to AIRBAG SYSTEM>Roll Connector>INSTALLATION .
- Align the position of the protrusion and install the sensor assembly VDC steering to the steering roll connector.
- Apply grease to the protrusion (a) of the new sensor assembly VDC steering.
- Install the column cover assembly. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>INSTALLATION .
- Install the steering wheel. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>INSTALLATION .
- Install the driver's airbag module. Refer to AIRBAG SYSTEM>Driver's Airbag Module>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Perform the neutral position setting of the sensor assembly VDC steering. Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
