2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Front ABS Wheel Speed Sensor: Removal
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Lift up the vehicle, and then remove the front wheels.
- Remove the sensor sub assembly front.CAUTION:
- Be careful not to damage the sensor.
- Do not apply excessive force to the sensor harness.
- Leave the sensor harness clamp on the vehicle side.

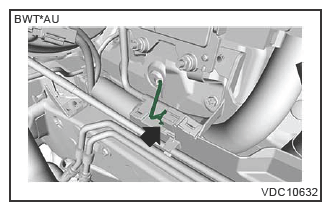

- Disconnect the connector of the sensor sub assembly front in the engine compartment.

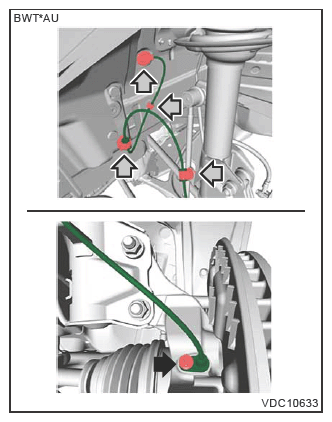

- Remove each harness clip and grommet.
- Remove the sensor sub assembly front from the front axle housing.
