Check Abs Wheel Speed Sensor Unit
- Visually check the tip of the front ABS wheel speed sensor for foreign particles or damage. If necessary, clean the tip or replace the front ABS wheel speed sensor.
- Disconnect the front ABS wheel speed sensor connector.
- Check the front ABS wheel speed sensor cable for discontinuity. If defective, replace the front ABS wheel speed sensor.

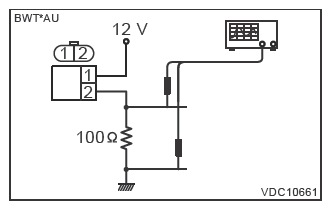

- Connect a 12 V power supply to No. 1 terminal of front ABS wheel speed sensor connector, then attach resistance to the No. 2 terminal. Rotate the wheel at about 3 km/h (2 MPH), and measure the voltage using an oscilloscope.
Standard value of output voltage:
0.7 - 1.4 V

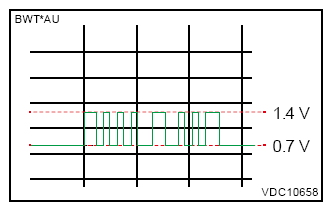

- Vehicle stopped state
Standard value of output voltage:
0.7 - 1.4 V

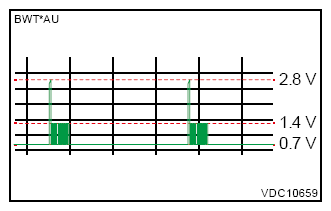

- Driving condition
Standard value of output voltage:
0.7 - 2.8 V

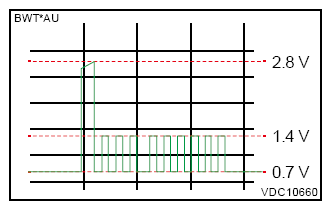

- Driving condition
- Driving condition (enlarged view)
- Replace the following parts if it is found defective.
- If the output voltage is out of the standard value: Replace the magnetic encoder (front hub unit bearing).
- If the output voltage is within the standard value: Replace the VDC CM&H/U.
