2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Switch Power Window Sub Rear

  1. Measure the resistance between terminals of the switch power window sub rear.

    Preparation tool:

    Circuit tester

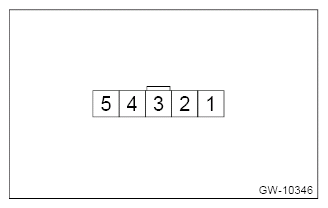

    • Front seats auto specification
      G12398776Courtesy of SUBARU OF AMERICA, INC.
      Terminal No. Inspection conditions Standard
      1 - 2
      5 - 4      		 OFF Less than 1 Ω
      2 - 3
      3 - 4
      1 - 3
      3 - 5      		 1 MΩ or more
      3 - 2
      5 - 4      		 Manual UP Less than 1 Ω
      1 - 2 1 MΩ or more
      1 - 2
      3 - 4      		 Manual DOWN Less than 1 Ω
      4 - 5 1 MΩ or more
    • All seats auto specification
      G12398775Courtesy of SUBARU OF AMERICA, INC.
      Terminal No. Inspection conditions Standard
      6 - 5 OFF Less than 1 Ω
      2 - 1
      2 - 5
      2 - 6      		 1 MΩ or more
      2 - 6 Manual UP Less than 1 Ω
      5 - 6
      2 - 5
      1 - 2      		 1 MΩ or more
      2 - 6
      1 - 2      		 Auto UP Less than 1 Ω
      5 - 6
      2 - 5      		 1 MΩ or more
      2 - 5 Manual DOWN Less than 1 Ω
      5 - 6
      2 - 6
      1 - 2      		 1 MΩ or more
      2 - 5
      1 - 2      		 Auto DOWN Less than 1 Ω
      5 - 6
      2 - 6      		 1 MΩ or more
  2. Apply battery voltage between the switch power window sub rear terminals to check lighting condition of illumination inside the switch.
    CAUTION: When applying battery voltage, make sure that each polarity (positive (+) and negative (-)) is properly connected.
    Incorrect polarity connection may cause LED damage inside the switch.
    • Front seats auto specification
      Terminal No. Inspection conditions Standard
      3 (+) - 1 (-)
      3 (+) - 5 (-)      		 Apply battery voltage. Light ON
    • All seats auto specification
      Terminal No. Inspection conditions Standard
      7 (+) - 2 (-) Apply battery voltage. Light ON
  3. Replace the switch power window sub rear if it is found defective from the inspection result.
