2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Switch Power Window Sub Front

  1. Measure the resistance between terminals of the switch power window sub front.

    Preparation tool:

    Circuit tester

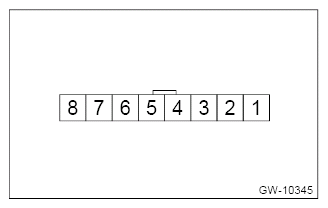

    G12398775Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    6 - 5 OFF Less than 1 Ω
    2 - 1
    2 - 5
    2 - 6    		 1 MΩ or more
    2 - 6 Manual UP Less than 1 Ω
    5 - 6
    2 - 5
    1 - 2    		 1 MΩ or more
    2 - 6
    1 - 2    		 Auto UP Less than 1 Ω
    5 - 6
    2 - 5    		 1 MΩ or more
    2 - 5 Manual DOWN Less than 1 Ω
    5 - 6
    2 - 6
    1 - 2    		 1 MΩ or more
    2 - 5
    1 - 2    		 Auto DOWN Less than 1 Ω
    5 - 6
    2 - 6    		 1 MΩ or more
  2. Apply battery voltage between the switch power window sub front terminals to check lighting condition of illumination inside the switch.
    CAUTION: When applying battery voltage, make sure that each polarity (positive (+) and negative (-)) is properly connected.
    Incorrect polarity connection may cause LED damage inside the switch.
    Terminal No. Inspection conditions Standard
    7 (+) - 2 (-) Apply battery voltage. Light ON
  3. Replace the switch power window sub front if it is found defective from the inspection result.
