2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

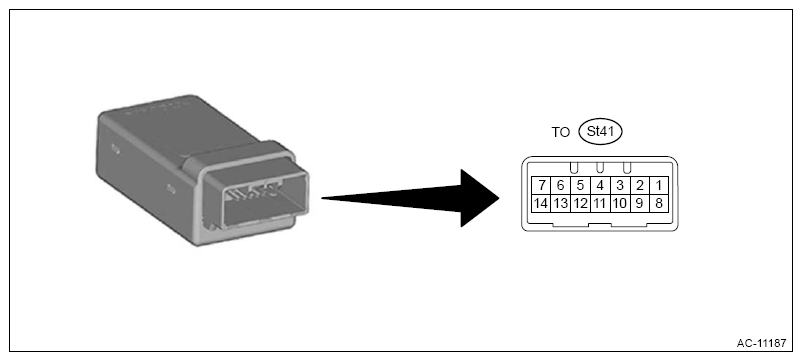

SEAT VENTILATION Control Module
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (St41) No. 1 | - | - | - |
| (St41) No. 2 (+) ββ Chassis ground (-) | Blower motor control signal (passenger's side) | Digital signal; cannot be measured | - |
| (St41) No. 3 | - | - | - |
| (St41) No. 4 | - | - | - |
| (St41) No. 5 (+) ββ Chassis ground (-) | Blower motor control signal (driver's side) | Digital signal; cannot be measured | - |
| (St41) No. 6 (+) ββ Chassis ground (-) | ACC power supply | Ignition switch: ACC | Battery voltage |
| (St41) No. 7 | - | - | - |
| (St41) No. 8 | - | - | - |
| (St41) No. 9 (+) ββ Chassis ground (-) | B-CAN L | Cannot be measured | - |
| (St41) No. 10 (+) ββ Chassis ground (-) | B-CAN H | Cannot be measured | - |
| (St41) No. 11 | - | - | - |
| (St41) No. 12 | - | - | - |
| (St41) No. 13 | - | - | - |
| (St41) No. 14 (+) ββ Chassis ground (-) | GND | Always | Resistance 1 Ξ© or less |
