2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

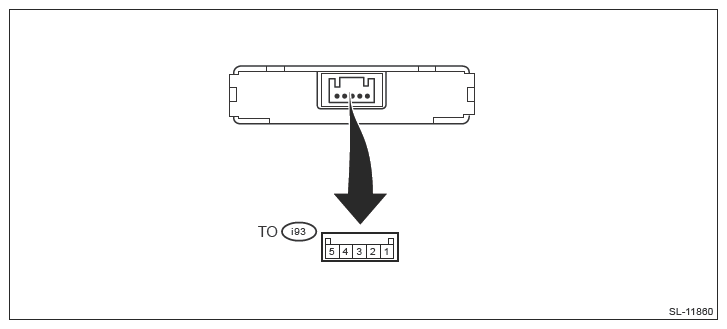

Id Code Box
| Terminal No. | Contents | Measuring condition | Standard | ||
|---|---|---|---|---|---|
| (i93) No. 1 ββ 5 | Battery power supply | Always (1) | 9.5 V or more | ||
| (i93) No. 2 | LIN communication | ACC ON, IGN ON or power OFF, and open/close the door | Pulse generation | ||
| (i93) No. 3 | - | - | - | ||
| (i93) No. 4 ββ | 5 Immobilizer communication 1 | Ignition switch OFF | 0 V | ||
| Ignition switch ON | 7 V or more β pulse generates temporarily | ||||
| (i93) No. 5 ββ Chassis ground | Ground | Always (1) | Less than 1 Ξ© | ||
|
|||||
