2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
X MODE Switch: Inspection

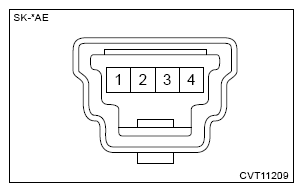

- Check the resistance between connector terminals.
Terminal No. Inspection conditions Standard 1 - 4 Counterclockwise (hold) 0 Ξ© PUSH (hold) Approx. 1 kΞ© Clockwise (hold) Approx. 3.67 kΞ© - Apply battery voltage between the connector terminals to check lighting status of illumination.CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.Terminal No. Inspection conditions Specifications 2 (+) - 3 (-) Apply battery voltage. Light ON
