2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Transmission Case: Disassembly

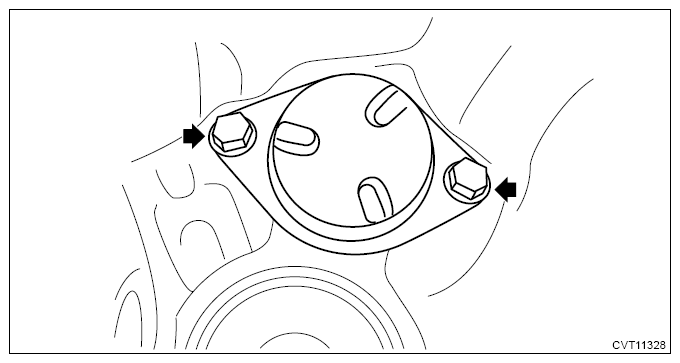

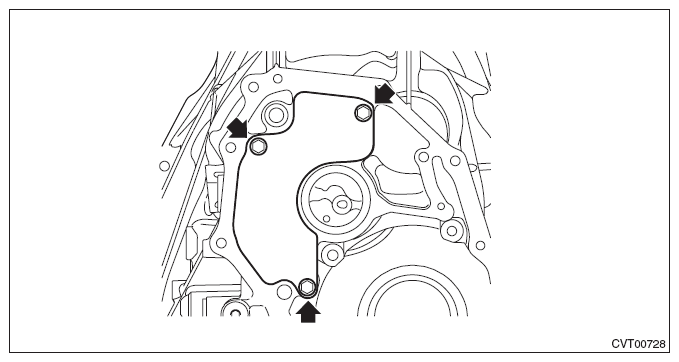

- Remove the oil stopper plate.

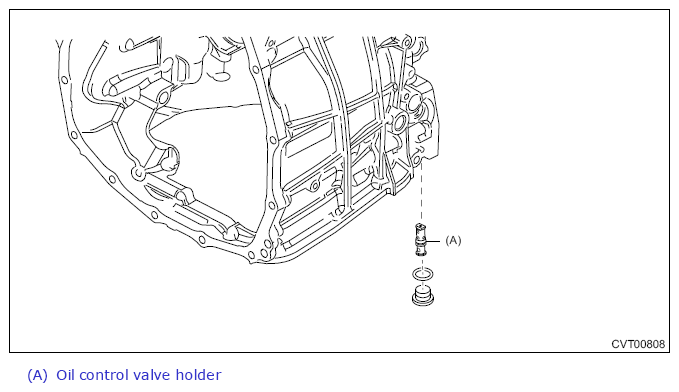

- Remove the plug, and remove the oil control valve holder.
- Remove the O-ring from the oil control valve holder.

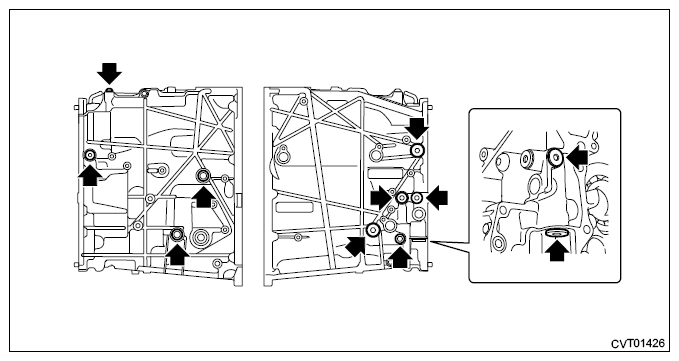

- Remove all plugs.

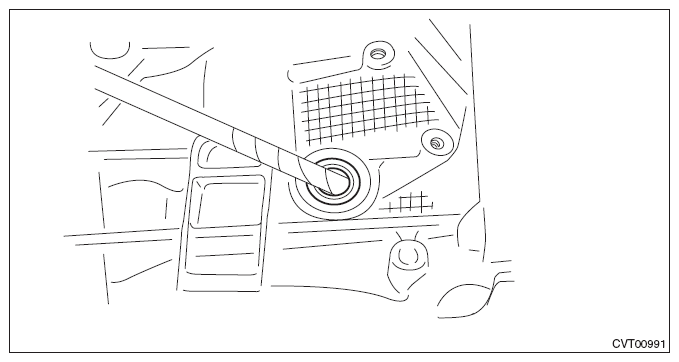

- Remove the oil seal using a screwdriver wrapped with cloth etc.

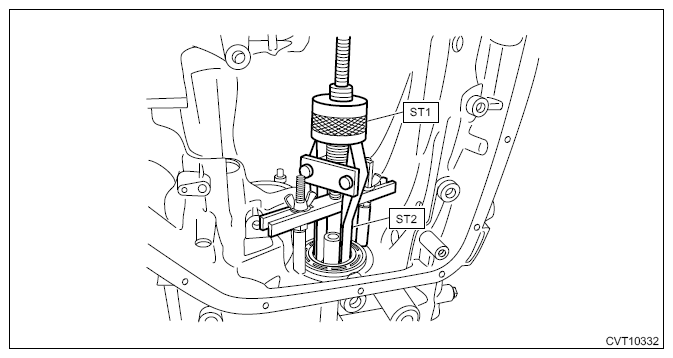

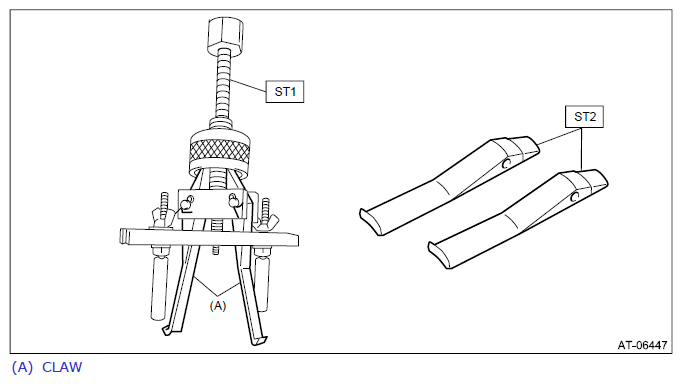

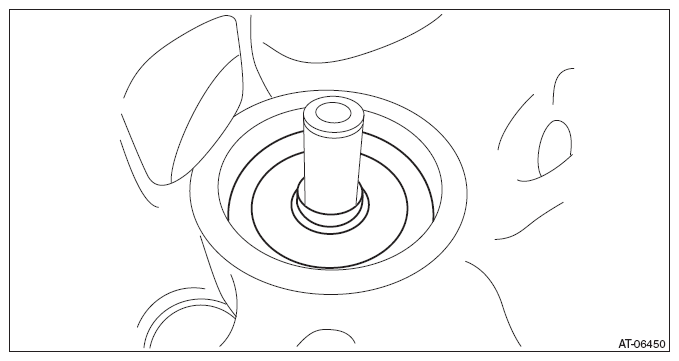

- Remove the ball bearing of the secondary pulley using the ST1 and ST2.
- Remove the oil guide.

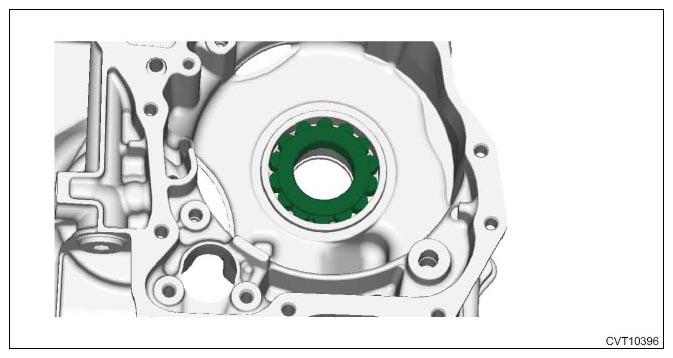

- Remove the roller bearing.

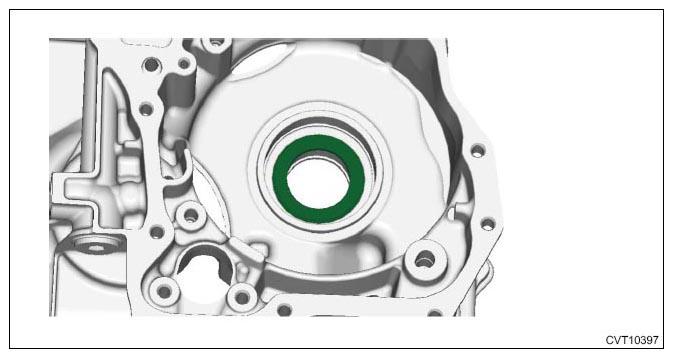

- Remove the thrust bearing.
- Remove the CVTF filter cover and gasket.
- Remove the CVTF filter.
