2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

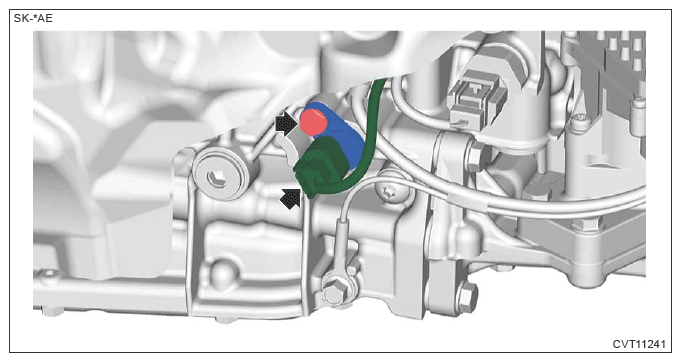

Secondary Speed Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the front exhaust pipe. Refer to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .
- Disconnect the connector and remove the secondary speed sensor.NOTE: Prepare the container for draining of engine oil.
