Reverse Brake: Disassembly

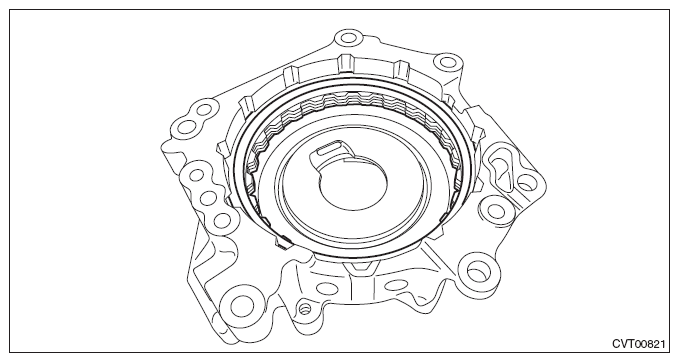

- Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.
- Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:
ST: COMPRESSOR SPECIAL TOOL (18762AA001)
- Remove the ST, and remove the spring retainer.
- Remove the return spring.

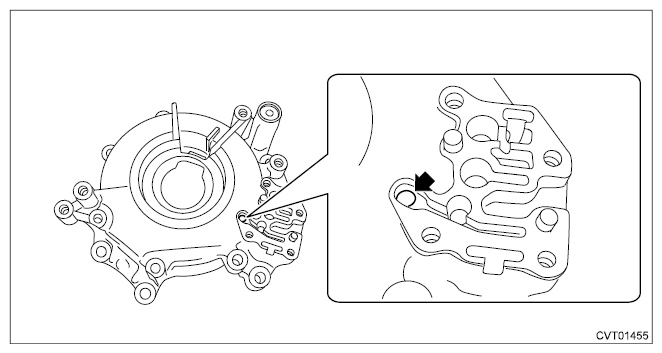

- Remove the reverse brake piston by blowing compressed air from reverse brake housing hole.
