2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Oil Pump Chain: Installation

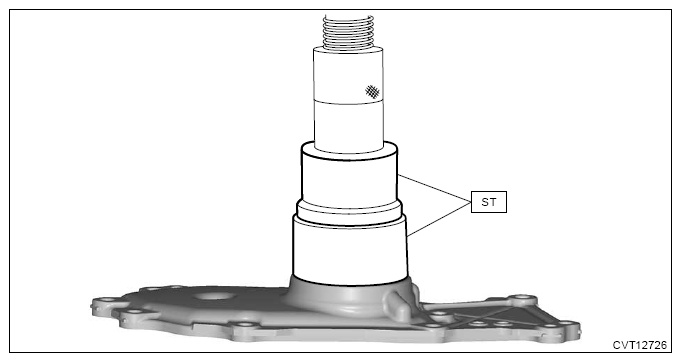

- Install a new oil seal using ST.NOTE: Apply CVTF to the press-fitting area.
Preparation tool:
ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)
- Install the drive sprocket.

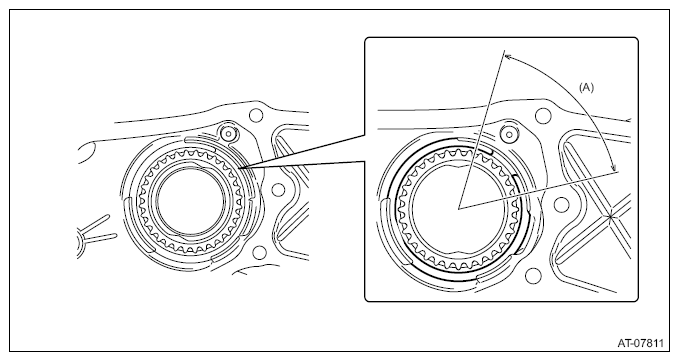

- Install the snap ring.NOTE: Install the snap ring so that its cutout portion is fitted into the snap ring groove of the oil pump chain cover and within the fitting area (A).
- Place the oil pump chain on drive sprocket.
- Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.
- Install a new seal ring.NOTE: Apply CVTF to the seal rings.
- Apply liquid gasket to the mating surface of the oil pump chain cover as shown in the figure, and temporarily install the oil pump chain cover.CAUTION: Do not apply liquid gasket at the arrowed hole.
