2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Inhibitor Switch: Removal
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
- Disconnect the select cable from the transmission main body.CAUTION: Do not apply excessive load while holding the part (a).

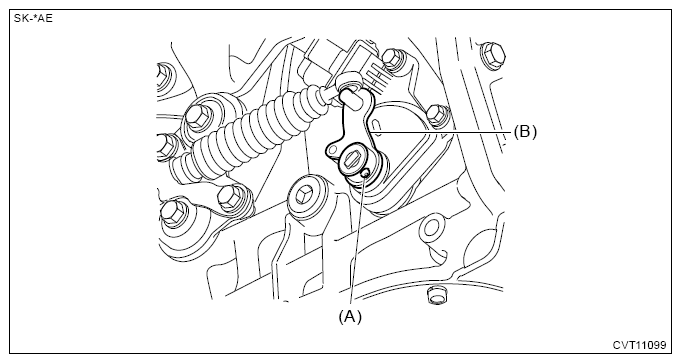

- Remove the spring pin (A) and remove the shifter arm (B).

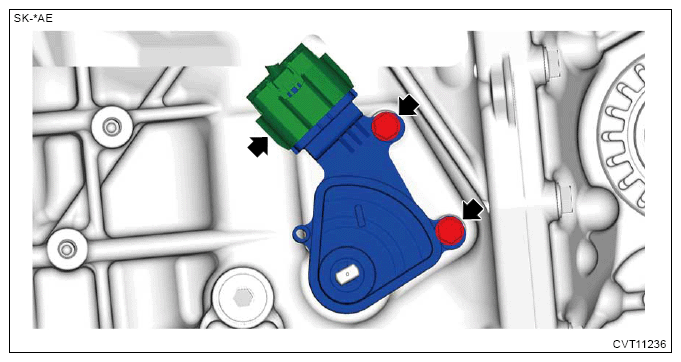

- Disconnect the connector and remove the inhibitor switch.
