2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Inhibitor Switch: Inspection

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the transmission harness connector.
    G11255510Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the ground cord.
    G11255509Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPERΒ .
  7. Remove the transmission case cover (front).
    G11255523Courtesy of SUBARU OF AMERICA, INC.
  8. Move the lock lever in the arrow direction while pressing the lock button (A), and disconnect the connector.
    G11255622Courtesy of SUBARU OF AMERICA, INC.
  9. Set the ST between the TCM and transmission harness. Refer to TRANSMISSION (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .

    Special tool:Β

    CHECK BOARD (18460AA040)

  10. Check the inhibitor switch signal circuit.
    1. Check the circuit of each range.
      NOTE: If faulty, check the transmission harness for open circuit or short circuit, or poor contact.
      G13225684Courtesy of SUBARU OF AMERICA, INC.
      Terminal No. Inspection conditions Standard
      38 - 42 P range Less than 1 Ξ©
      37 - 42 R range
      36 - 42 N range
      35 - 42 D range

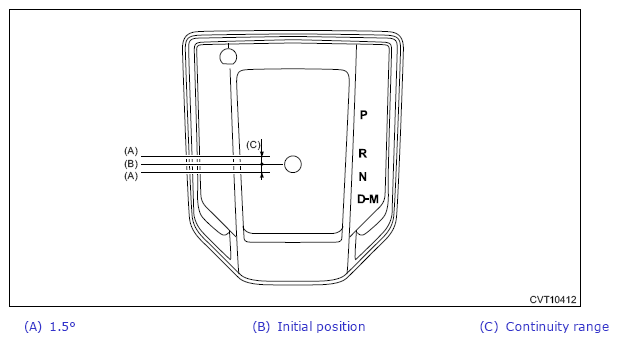

    2. Check continuity when the lever is moved 1.5Β° in the front-rear direction from each range.

      If there is continuity in only one direction or in other points, adjust the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>INHIBITOR SWITCH>ADJUSTMENTΒ .

      G13592029Courtesy of SUBARU OF AMERICA, INC.
      G13225684Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    38 - 42 P range Less than 1 Ξ©
    37 - 42 R range
    36 - 42 N range
    35 - 42 D range
  11. Check the neutral switch signal circuit and back-up light circuit.

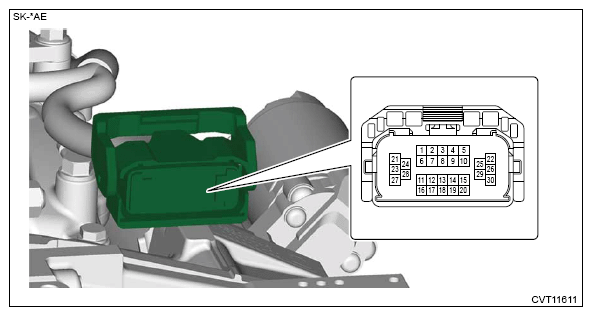

    G13225687Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Range Standard
    1 - 5 P range and N range Less than 1 Ξ©
    22 - 26 Except for R range ∞Ω
    22 - 26 R range Less than 1 Ξ©
