Drive Plate: Installation

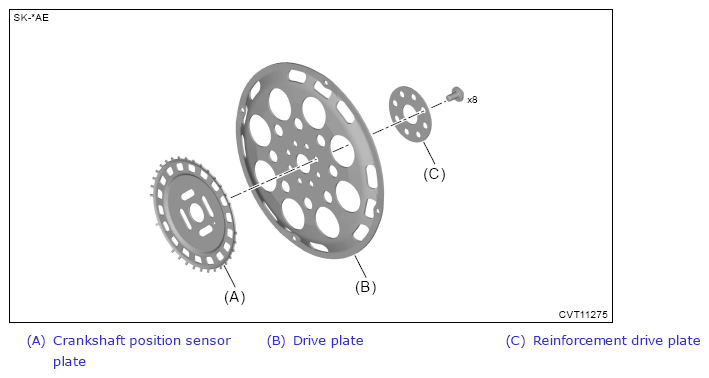

- Temporarily attach the reinforcement drive plate, drive plate and crankshaft position sensor plate, and set the ST.NOTE:
- Install with the stamped mark of the crankshaft position sensor plate facing the transmission side.
- Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.
Preparation tool:
ST: CRANKSHAFT STOPPER (498497300)

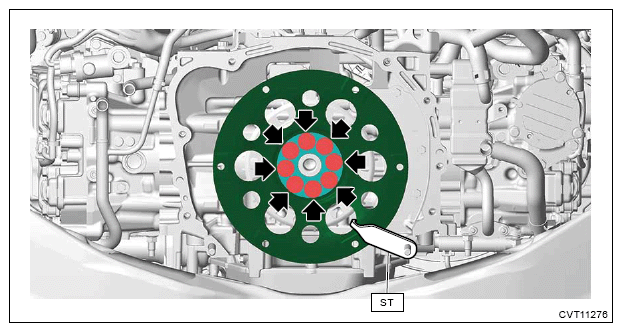

- Tighten the bolts securing the drive plate.
- Tighten the bolts securing the drive plate.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
- Using an angle gauge, further tighten the bolts securing the drive plate.
Tightening angle:
30° - 35°
Install the transmission body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>INSTALLATION .
