2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Inspection
- Check for oil leaks.
- Check that there is no deformation, cracks or other damages.
- Measure the resistance of each solenoid, sensor and ground wire.NOTE: Measurement should be performed at a temperature of 20°C (68°F).

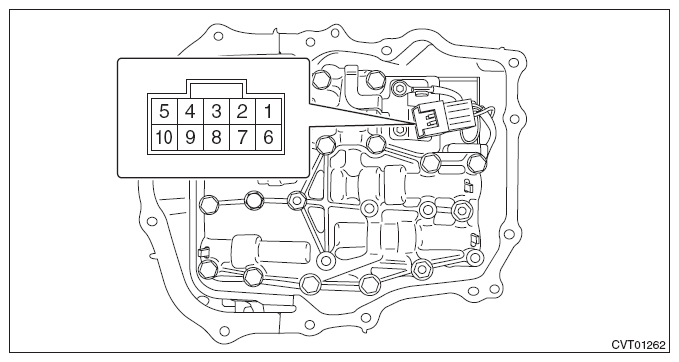

Terminal No. Standard Primary UP solenoid 2 - Control valve body 10 - 14.2 Ω Secondary solenoid 3 - Control valve body 4.8 - 8.4 Ω F & R clutch solenoid 4 - Control valve body 3.5 - 7.1 Ω Primary DOWN solenoid 7 - Control valve body 10 - 14.2 Ω Lock-up duty solenoid 9 - Control valve body 10 - 14.2 Ω AWD solenoid 10 - Control valve body 1.5 - 4.9 Ω Oil temperature sensor 1 - 6 Approx. 2.5 kΩ [20°C (68°F)] Ground 8 - Control valve body Less than 1 Ω
