2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Activation Of Malfunction Indicator Light

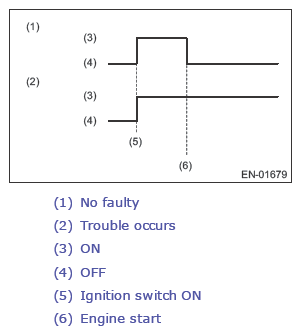

- When the ignition switch is turned to ON (engine OFF), the malfunction indicator light in the combination meter illuminates.NOTE: If the malfunction indicator light does not illuminate, perform diagnostics of the malfunction indicator light circuit or the combination meter circuit. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>WARNING LIGHT ILLUMINATION PATTERN>MALFUNCTION INDICATOR LIGHT DOES NOT COME ON .
- After starting the engine, the malfunction indicator light goes out. If it does not go off, any of the engine and emission control system has malfunction.

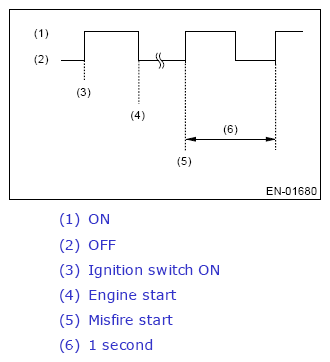

- If the diagnostic system detects a misfire which could damage the catalyst, the malfunction indicator light will blink at a cycle of 1 Hz.
