Fuel Injector Circuit

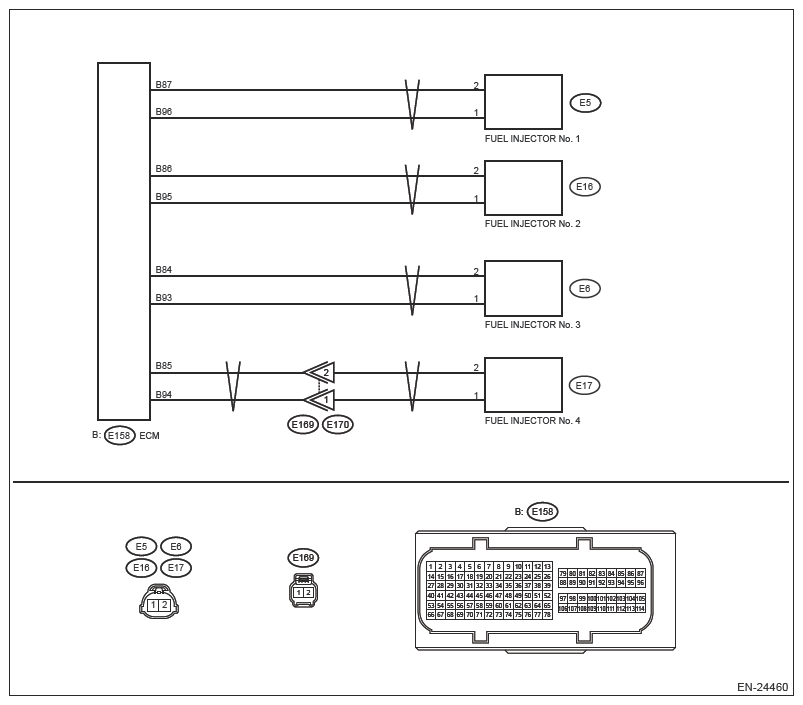

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .
- Check or repair only faulty parts.
- Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .
- CHECK OPERATION OF EACH FUEL INJECTOR.
While cranking the engine, check each fuel injector emits operating sound. Use a sound scope or attach a screwdriver to the injector to listen to sounds for this check.
Does the fuel injector emit operating sound?
Yes: Check the fuel pressure. Ref. to MECHANICAL (H4DO)>FUEL PRESSURE>INSPECTION .
No: Go to 2.
- CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR (OPEN).
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Disconnect the connector from fuel injector.
- Measure the resistance of harness between ECM and fuel injector connector.
Connector & terminal
#1 (E158) No. 96 - (E5) No. 1:
#1 (E158) No. 87 - (E5) No. 2:
#2 (E158) No. 95 - (E16) No. 1:
#2 (E158) No. 86 - (E16) No. 2:
#3 (E158) No. 93 - (E6) No. 1:
#3 (E158) No. 84 - (E6) No. 2:
#4 (E158) No. 94 - (E17) No. 1:
#4 (E158) No. 85 - (E17) No. 2:
Is the resistance less than 1 Ω?
Yes: Go to 3.
No: Repair the following item.
- Open circuit in harness between ECM and fuel injector connector
- Poor contact of coupling connector
- CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR (SHORT TO GROUND).
Measure the resistance between fuel injector connector and engine ground.
Connector & terminal
#1 (E5) No. 1 - Engine ground:
#1 (E5) No. 2 - Engine ground:
#2 (E16) No. 1 - Engine ground:
#2 (E16) No. 2 - Engine ground:
#3 (E6) No. 1 - Engine ground:
#3 (E6) No. 2 - Engine ground:
#4 (E17) No. 1 - Engine ground:
#4 (E17) No. 2 - Engine ground:
Is the resistance 1 MΩ or more?
Yes: Go to 4.
No: Repair the short circuit to ground in harness between ECM and fuel injector connector.
- CHECK EACH FUEL INJECTOR.
Check each fuel injector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INJECTOR>INSPECTION .
Is the check result OK?
Yes: Repair the poor contact of ECM connector.
No: Replace the faulty fuel injector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INJECTOR .
NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .
