2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Engine Starting System & Charging System: Generator: Installation
- Temporarily install the generator.

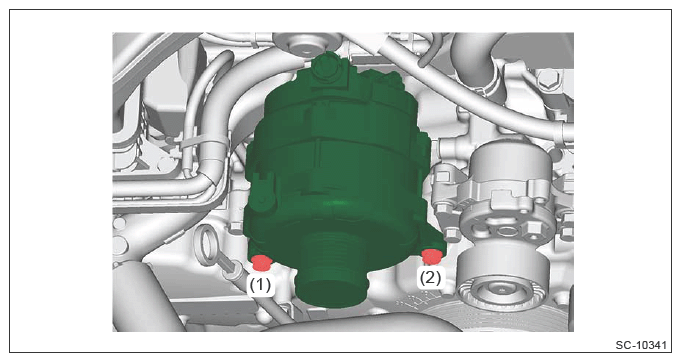

- Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Connect the connector and terminal B.
Tightening torque:
15.5 N.m (1.6 kgf-m, 11.4 ft-lb)
- Install the V-belts. Refer to MECHANICAL (H4DO)>V-BELT>INSTALLATION>V-BELT .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
