2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Battery Cable Assembly: Installation

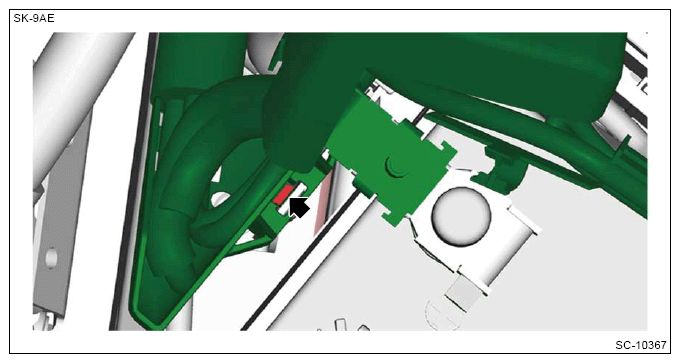

  1. Secure the battery cable assembly to the bracket.
    G13224896Courtesy of SUBARU OF AMERICA, INC.

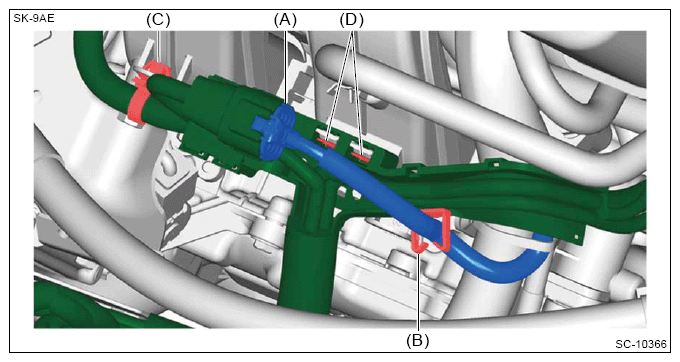

  2. Secure the battery cable assembly with the claw (D) and clip (C).
  3. Install the engine wiring harness to the clip (B), and connect the connector (A).
    G13224895Courtesy of SUBARU OF AMERICA, INC.
  4. Secure the battery cable assembly with the clip (A) and clip (B).
  5. Connect the connector (C), connector (D), and the terminal (E).

    Tightening torque:

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

    G13223860Courtesy of SUBARU OF AMERICA, INC.

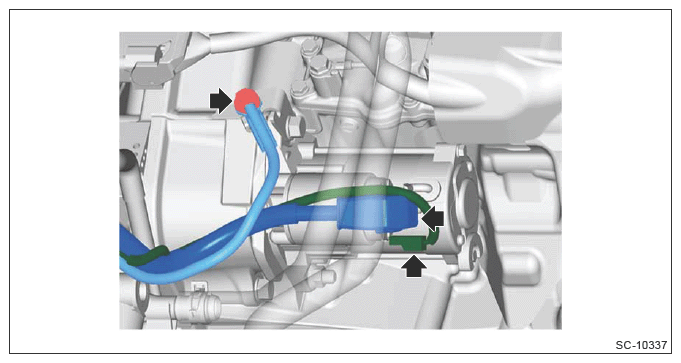

  6. Connect the terminal B and connector to the starter.

    Tightening torque:

    11 N.m (1.1 kgf-m, 8.1 ft-lb)

  7. Connect the ground terminal to the cable stay.

    Tightening torque:

    14 N.m (1.4 kgf-m, 10.3 ft-lb)

    G13224861Courtesy of SUBARU OF AMERICA, INC.
  8. Install the air intake boot. Refer to INTAKE (INDUCTIONS (H4DO)>AIR INTAKE BOOT>INSTALLATION .

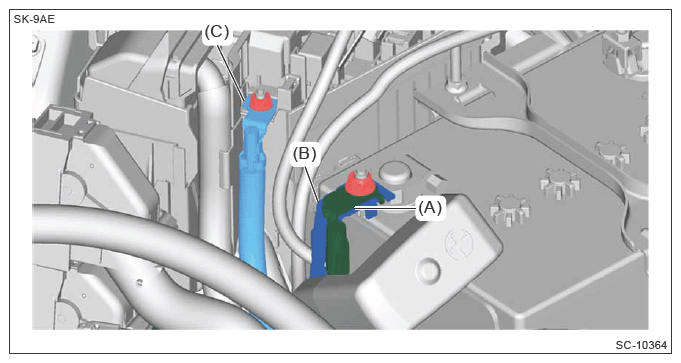

  9. Connect the terminal (C), terminal (B) and terminal (A).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G13224890Courtesy of SUBARU OF AMERICA, INC.
  10. Install the collector cover, Refer to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .

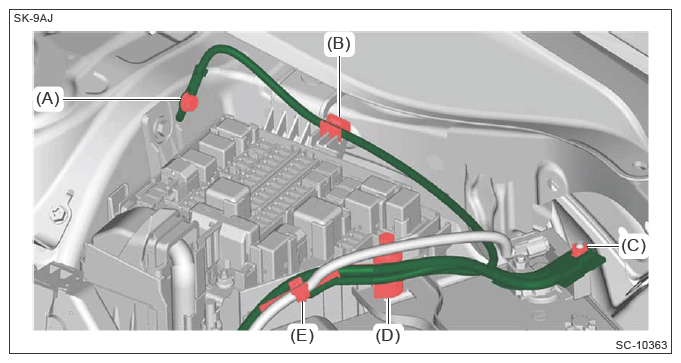

  11. Install the battery sensor harness to the clip (E).
  12. Install the battery cable holder (D), and connect the ground terminal (C).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  13. Install the ground cable to the clip (B), and connect the ground terminal (A).

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    G13224889Courtesy of SUBARU OF AMERICA, INC.
