2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

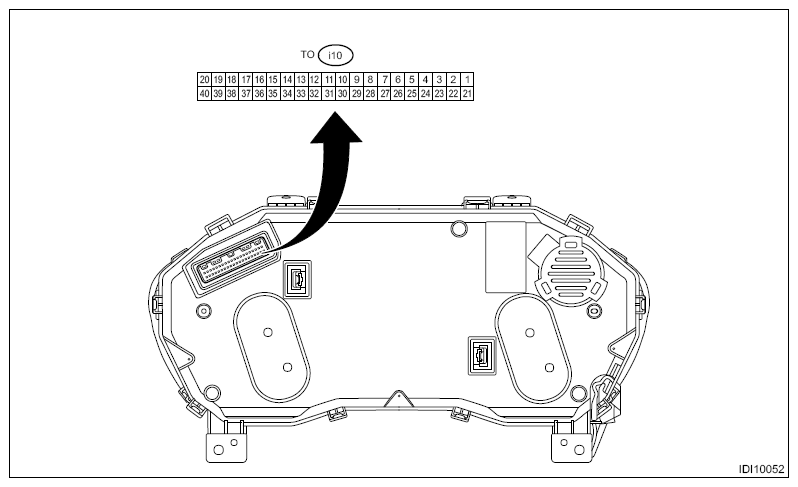

Electrical Specification
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (i10) No. 1 (+) ββ Chassis ground (-) | Battery power supply | Always | 8 V - 16 V |
| (i10) No. 2 (+) ββ Chassis ground (-) | Ignition power supply (main) | Ignition switch ON | 8 V - 16 V |
| (i10) No. 3 | - | - | - |
| (i10) No. 4 (+) ββ Chassis ground (-) | Seat belt (driver's seat) | Seat belt not fastened β fastened | 8 V - 16 V β 0 V |
| (i10) No. 5 | - | - | - |
| (i10) No. 6 | CAN H (CAN communication line) | - | - |
| (i10) No. 7 | CAN L (CAN communication line) | - | - |
| (i10) No. 8 | - | - | - |
| (i10) No. 9 | - | - | - |
| (i10) No. 10 | - | - | - |
| (i10) No. 11 | MFD (UART communication line) | - | - |
| (i10) No. 12 | WARNING BOX (UART communication line) | - | - |
| (i10) No. 13 | - | - | - |
| (i10) No. 14 (+) ββ Chassis ground (-) | Washer fluid level sensor | Washer fluid level sensor OFF β ON | 8 - 16 V β 0 V |
| (i10) No. 15 | - | - | - |
| (i10) No. 16 | - | - | - |
| (i10) No. 17 | - | - | - |
| (i10) No. 18 (+) ββ Chassis ground (-) | Oil pressure warning light | Oil pressure sensor OFF β ON | 8 - 16 V β 0 V |
| (i10) No. 19 (+) ββ Chassis ground (-) | Security indicator | - | - |
| (i10) No. 20 | - | - | - |
| (i10) No. 21 | RH turn indicator | Switch ON | 0 V β 8 - 16 V |
| (i10) No. 22 | LH turn indicator | Switch ON | 0 V β 8 - 16 V |
| (i10) No. 23 | Ambient sensor (+) | Always | Ref. to AIR CONDITIONER>AMBIENT SENSOR>INSPECTION . |
| (i10) No. 24 | Ambient sensor (-) | - | - |
| (i10) No. 25 | Fuel level sensor (+) | Always | Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL LEVEL SENSOR . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR . |
| (i10) No. 26 | Fuel level sensor (-) | - | - |
| (i10) No. 27 | - | - | - |
| (i10) No. 28 | - | - | - |
| (i10) No. 29 | Illumination control switch (GND) | - | - |
| (i10) No. 30 | Illumination control switch (VR) | - | - |
| (i10) No. 31 | Illumination control switch (+) | - | - |
| (i10) No. 32 ββ No. 29 | Bright switch signal input | Switch ON | Continuity exists |
| (i10) No. 33 | Bright switch signal output | - | - |
| (i10) No. 34 | Illumination (-) PWM | - | - |
| (i10) No. 35 | SI-DRIVE switch | - | - |
| (i10) No. 36 ββ Chassis ground | Auto Start Stop OFF switch | Switch ON | Continuity exists |
| (i10) No. 37 ββ Chassis ground | X mode switch | Switch ON | Continuity exists |
| (i10) No. 38 ββ Chassis ground | TFT switch (TFT color meter only) | Switch ON | Continuity exists |
| (i10) No. 39 | - | - | - |
| (i10) No. 40 ββ Chassis ground | GND | Always | Less than 1 Ξ© |
