2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

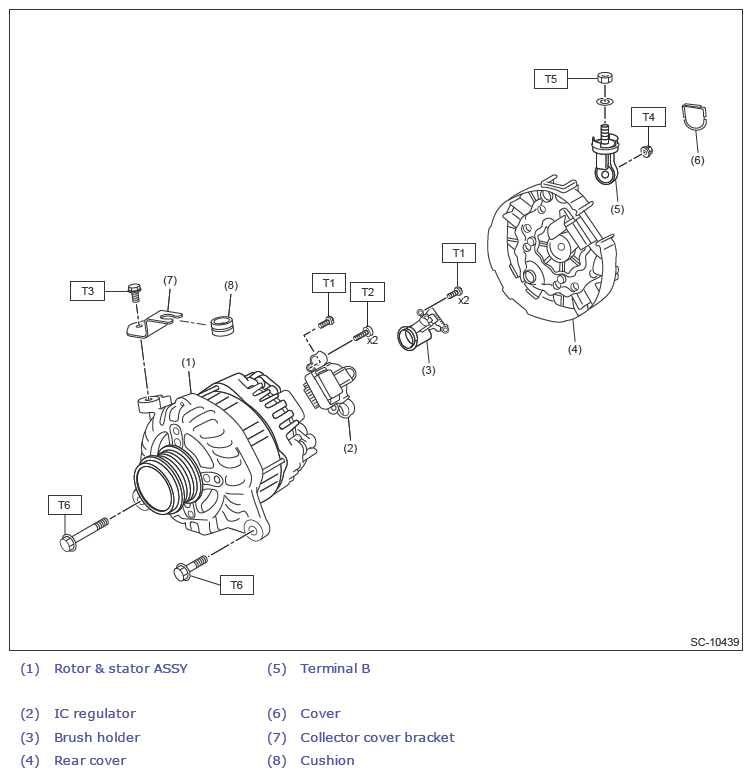

Components With Torque Specifications: Generator
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 3.9 (0.4, 2.9)
T3: 6.4 (0.7, 4.7)
T4: 8.9 (0.9, 6.6)
T5: 15.5 (1.6, 11.4)
T6: Refer to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>INSTALLATION .
