2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Keyless Entry Control Module: Removal
CAUTION:
Before handling the airbag system components, refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
- Remove the trim panel assembly apron LH and the trim panel rear pillar UPR LH. Refer to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .

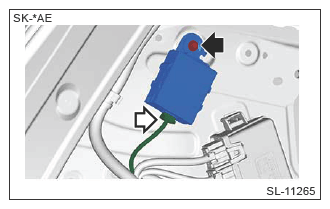

- Remove the keyless entry control module.
- Disconnect the connector.
- Remove the bolt and then remove the keyless entry control module.
