2020 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

AT Select Lever Assembly

  1. Clean all the parts before assembly.

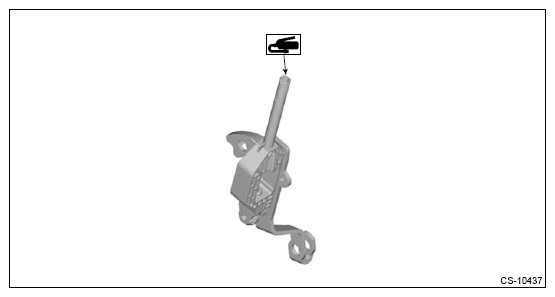

  2. Apply Multemp SH-K II or equivalent to the end of select lever COMPL. (Crosstrek hybrid model)
    G13232309Courtesy of SUBARU OF AMERICA, INC.
  3. Apply Multemp D No. 2 or equivalent to the sliding portion of each part.

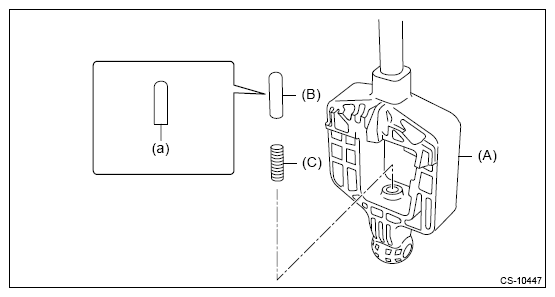

  4. Install the rod detent (B) and detent spring (C) to the select lever COMPL (A).
    NOTE: Install the rod detent (a) with its flat face facing downward.
    G13232310Courtesy of SUBARU OF AMERICA, INC.
  5. Install the plate guide to the select lever COMPL.
  6. Install the arm COMPL. (Except for Crosstrek hybrid model)
  7. Install the select lever COMPL to the plate COMPL.
  8. Install the spacer pin.
  9. Install the clamp pin.
  10. Install the spacer pin guide.
  11. Install the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G13225501Courtesy of SUBARU OF AMERICA, INC.
  12. Install the shaft control.
  13. Install the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G13225502Courtesy of SUBARU OF AMERICA, INC.

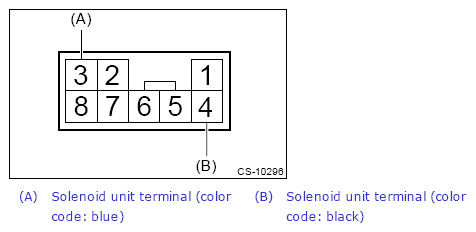

  14. Insert the solenoid unit terminals to the harness connector.
    G13602894Courtesy of SUBARU OF AMERICA, INC.
  15. Install the solenoid unit.
  16. Install the harness to the plate COMPL.
  17. Install the harness connector to the plate COMPL.
  18. Install the gasket.
  19. Install the spacer plate.
  20. After installation, check the following points.
    • Except for Crosstrek hybrid model
    1. The select indicator matches the select lever position when the select lever is changed from "P" range to "D" range.
    2. The select lever position and the position mark match each other.
    3. Operating force to move the select lever from "P" to "D" range
    • Crosstrek hybrid model
    1. The select indicator matches the select lever position when the select lever is changed from "P" range to "B" range.
    2. The select lever position and the position mark match each other.
    3. Operating force to move the select lever from "P" to "B" range
