2020 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.

Remove the center exhaust cover.

Except for Crosstrek hybrid model

Courtesy of SUBARU OF AMERICA, INC.

Crosstrek hybrid model

Courtesy of SUBARU OF AMERICA, INC.

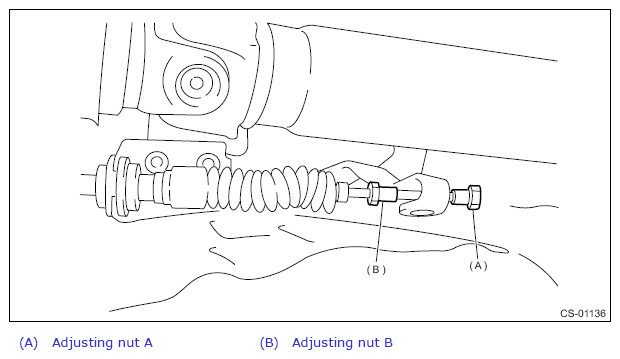

Loosen the adjusting nuts on both sides.

Courtesy of SUBARU OF AMERICA, INC.

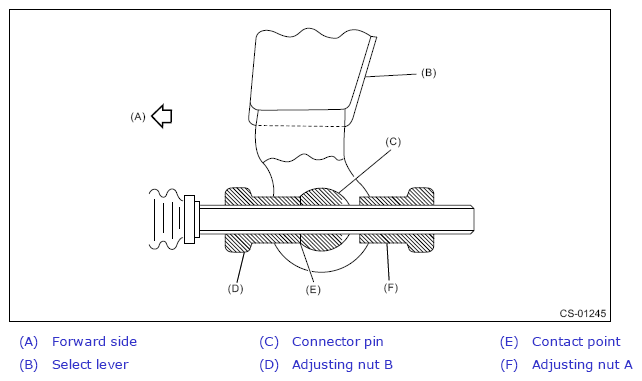

Turn adjusting nut B until it lightly touches the connector pin.

Courtesy of SUBARU OF AMERICA, INC.

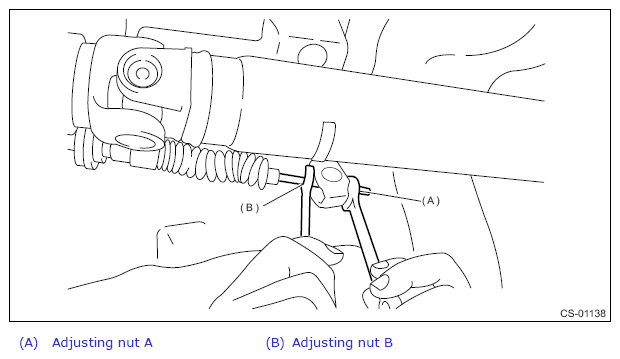

Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install in the reverse order of removal.
