2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.
    G13199468Courtesy of SUBARU OF AMERICA, INC.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

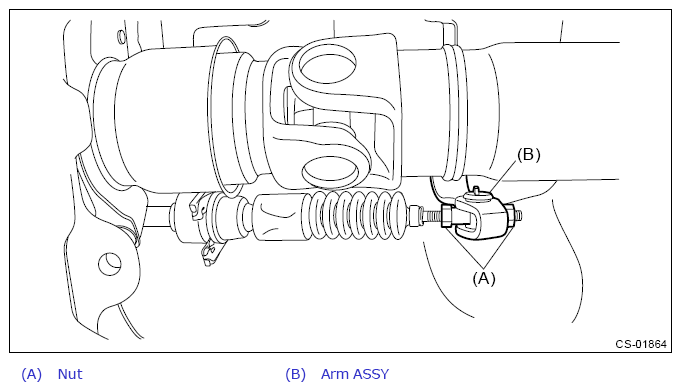

  5. Remove the select cable from the arm assembly.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13199837Courtesy of SUBARU OF AMERICA, INC.

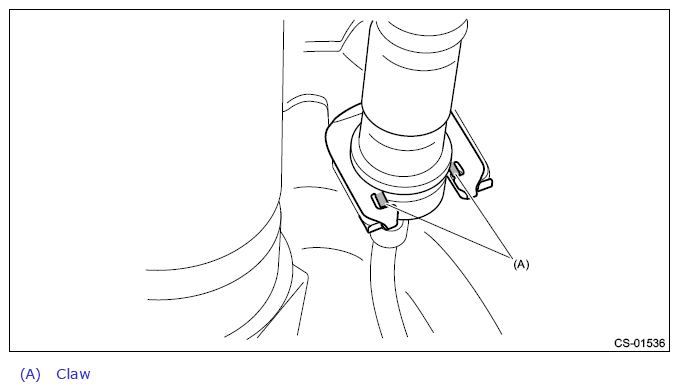

  6. Raise the claw of clamp to remove the select cable.
    G13199838Courtesy of SUBARU OF AMERICA, INC.
  7. Lower the vehicle.
  8. Lower the cover grip AT vertically toward the lever.
    G13199839Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the clamp grip pin.
    G13199840Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the grip assembly.
    G13199841Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the rod COMPL.
    G13199842Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  13. Remove the cover center side RH and the cover center side LH. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  14. Disconnect the harness connector.
    G13199843Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the four bolts to remove the select lever COMPL.
    G13199844Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the harness clip from the select lever COMPL.
    G13199845Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the indicator cover.
    G13199846Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the harness connector from the select lever COMPL.
    G13199847Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the harness from the select lever COMPL.
    G13199848Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the housing, blind A and blind B.
    G13199849Courtesy of SUBARU OF AMERICA, INC.

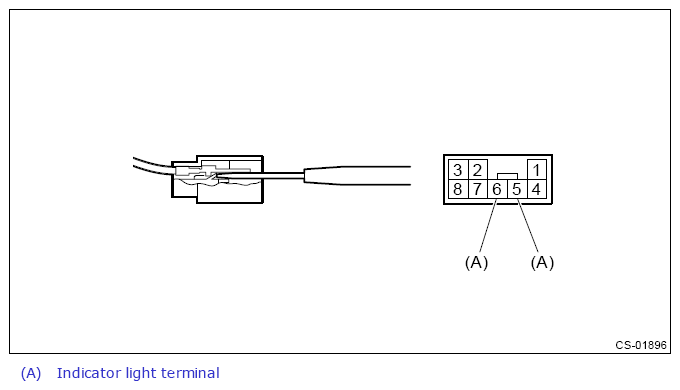

  21. Remove the terminal of the indicator light using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
G13199850Courtesy of SUBARU OF AMERICA, INC.
Terminal No.  Wiring color
5 Red/white
