2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.
    G13199468Courtesy of SUBARU OF AMERICA, INC.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

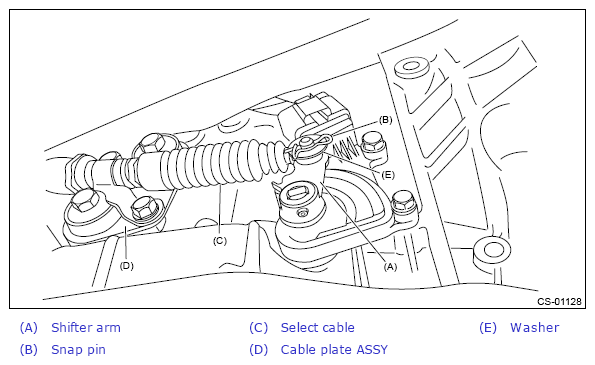

  5. Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G13199866Courtesy of SUBARU OF AMERICA, INC.

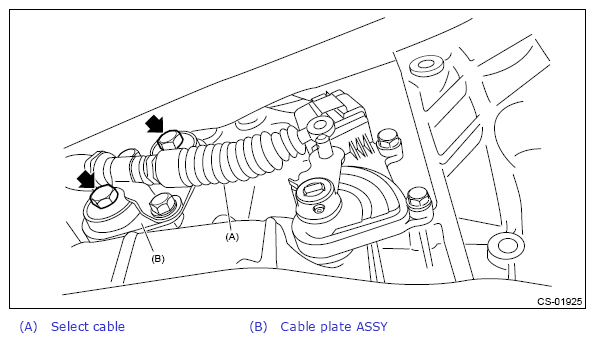

  6. Remove the cable plate assembly from the transmission case.
    G13199867Courtesy of SUBARU OF AMERICA, INC.

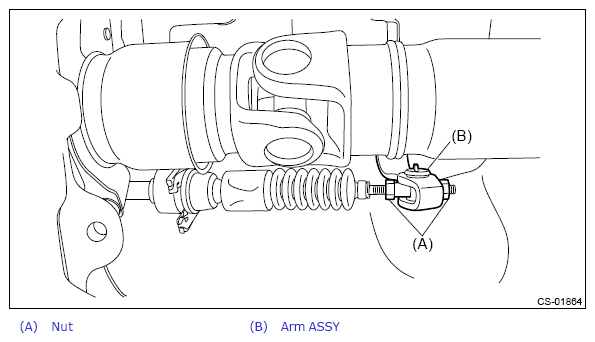

  7. Disconnect the select cable from the arm assembly.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G13199869Courtesy of SUBARU OF AMERICA, INC.

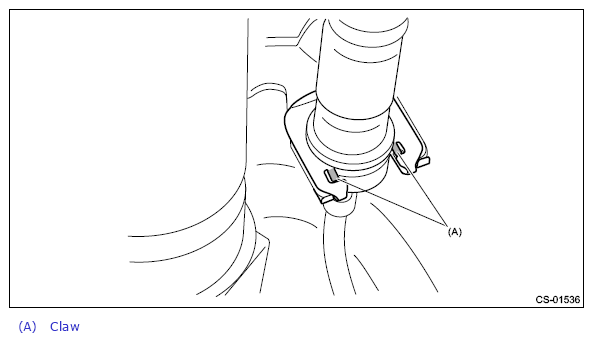

  8. Raise the claw of clamp to remove the select cable from bracket.
    G13199870Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the select cable from the cable plate assembly.
