Select Cable: Adjustment
- Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

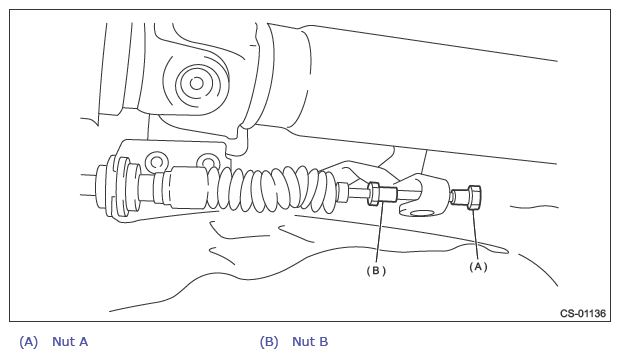

- Loosen the nuts on both sides.

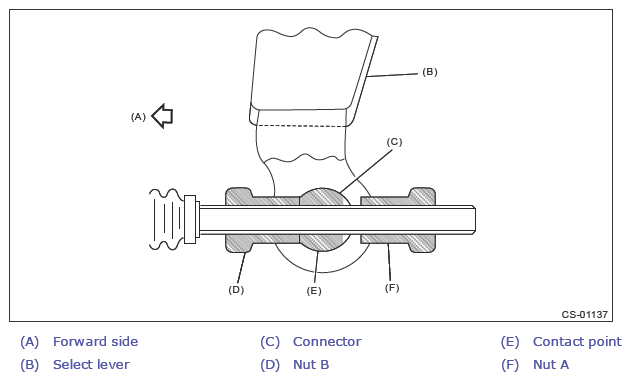

- Turn the nut B until it lightly touches the connector.

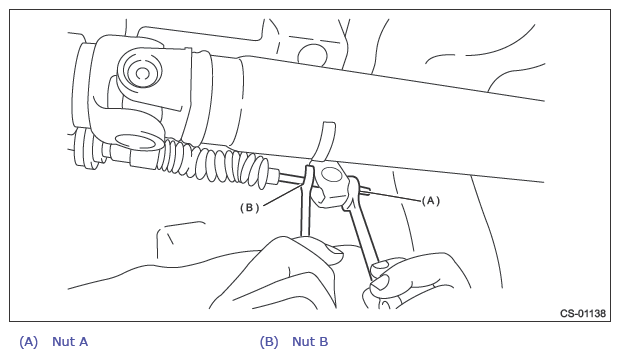

- Set a spanner wrench to the nut B so that it does not rotate, and then tighten the nut A.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, confirm that the select lever operates normally at all ranges.
- Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR) .
